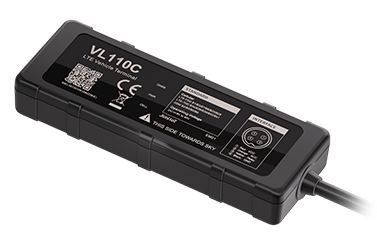

Jimi JM-VL110C
The VL110C is a compact 4G LTE Vehicle GNSS Terminal that serves as an all-in-one tracker for motorcycles, passenger cars, and light commercial vehicles. Its key strength is its versatility, supporting a 9–90V wide voltage range to work seamlessly across nearly all vehicle types, from scooters to trucks. For robust connectivity, it uses 4G LTE with 2G fallback (GSM), ensuring a stable connection in diverse environments. Its small size allows for discreet installation, making it an ideal mini GPS tracker for anti-theft protection and stolen vehicle recovery. Furthermore, a built-in backup battery provides continuous tracking capability even if the main vehicle power is lost.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 44 g (1.55 oz.) |
| Size | 94x34x15 mm (3.7x1.34x0.59 in) |
| Waterproof class | IP65 |
| Internal antenna (GNSS) | Yes |
| Internal antenna (Connection) | Yes |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
| Cellular network type | LTE FDD: B1/B3/B7/B8/B20/B28 |
| Cellular network generation | 4G, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Built-in battery | Yes |
| Battery capacity | 270 mAh |
Interfaces
| Discrete inputs | 1 |
| Number of outputs | 1 |
Input Fields
State Fields
Events monitoring
