JamTrack

JamTrack

Select GPS tracker model

Click on the model image to see detailed information and current list of supported features

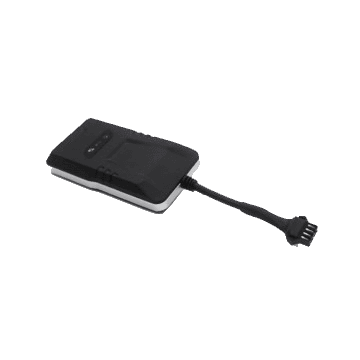

JamTrack JM04

JamTrack JM04 is a lowcost vehicle tracker, which has a basic functionality and also easy to use. This tracker allows to control engine by using blocking relay, which can be connected to device output. JamTrack JM04 supports 2G network, which is widely supported in the world.

Location and tracking

  • Continuous tracking mode
  • LBS Support

Power supply

  • External power supply (12-24V)

Mobile networks

  • 2G Network
  • 850/900/1800/1900 Mhz

Inputs and outputs

  • 1 Discrete input
  • 1 Output

Other features

  • Remote management
  • LED indication

JamTrack JM05

JamTrack JM05 is a lowcost vehicle tracker, which has a basic functionality and also easy to use. This tracker allows to control engine by using blocking relay, which can be connected to device output. JamTrack JM05 supports 2G network, which is widely supported in the world.

Location and tracking

  • Continuous tracking mode
  • LBS Support

Mobile networks

  • 2G Network

Inputs and outputs

  • 1 Discrete input
  • 1 Output

Other features

  • Remote management
  • LED indication

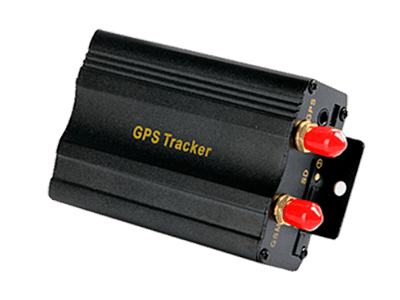

JamTrack JM10

JamTrack JM10 is a cost-effective vehicle tracking device.

Package contents

Package contents include:

  • External GPS Antenna
  • External GSM Antenna
  • 10-pin harness
  • Engine block relay

Location and tracking

JamTrack JM10 model is embedded with GPS and doesn't have support of GLONASS and alternative systems. It either doesn’t support Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

With Quad-band GSM 2G module JM10 can be operated all over the world.

Power supply

External power supply might be 12V or 24V, which makes possible to install JM10 both on cars and vans.

JamTrack JM10 also features a built-in rechargeable backup battery. When fully charged it ensures about 3-4 hours of device operation (in normal conditions).

Local and remote management

JamTrack JM10 tracker can be fully controlled over GPRS, including configuration of tracking modes and controlling outputs. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.

LED Indication

JamTrack JM10 has two LEDs

  • Red LED indicates GSM/GPRS mode

  • Green LED indicates GPS reception

Looking for other JamTrack model? Suggest us to integrate it.
