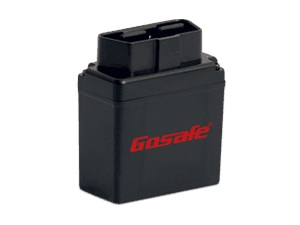

The G797 device is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation.
The standard package contains:
- OBDII power supply adapter
Location and tracking
G797 model is embedded with GPS chip with the support of GLONASS technology as well. It also supports Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).
The tracking mode is flexible configured: by moving every 100m, and every 60 sec, and on turning on 30 degrees by default. When there is no movement, tracker sends data every 180 seconds.
OBDII data reading
G797 supports reading of OBDII data from vehicle’s diagnostic system such as speed, engine RPM, coolant temperature, MIL, DTC codes, etc. It takes power supply from OBDII port and also can read board voltage.
G797 has a Quad-band GSM 2G module so it can be operated all over the world. Also it supports much faster and stable 3G connection
G797 uses OBD II Connector Type A and voltage range 10-16V, which makes possible to install it on cars. Device also features a built-in rechargeable backup battery. When fully charged it ensures about 1 hour of device operation (in normal conditions).
Local and remote management
GoSafe G797 tracker can be controlled over GPRS and it supports firmware updating via GPRS (FOTA). Also, there is a wide list of SMS commands, on which device always replies back. In particular, Server address and port, APN settings can be applied remotely with SMS.
You can also configure G797 from a PC using proprietary software and standard USB-cable which is included into package.
G797 has three LEDs:
- Green GSM LED: indicates GSM/GPRS mode
- Yellow GPS LED: indicates GPS reception
- Red Power LED: indicates power status
