Escort TD-online

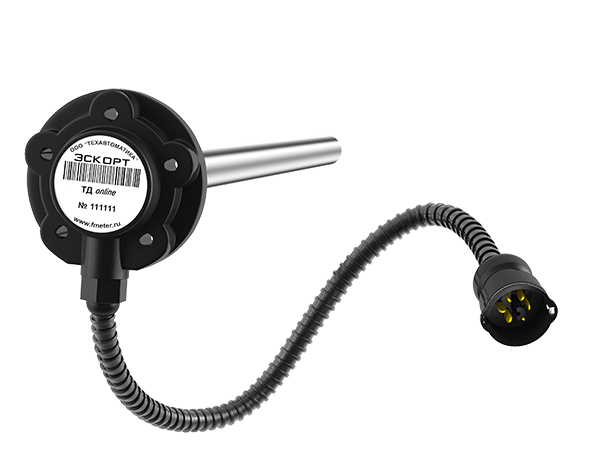

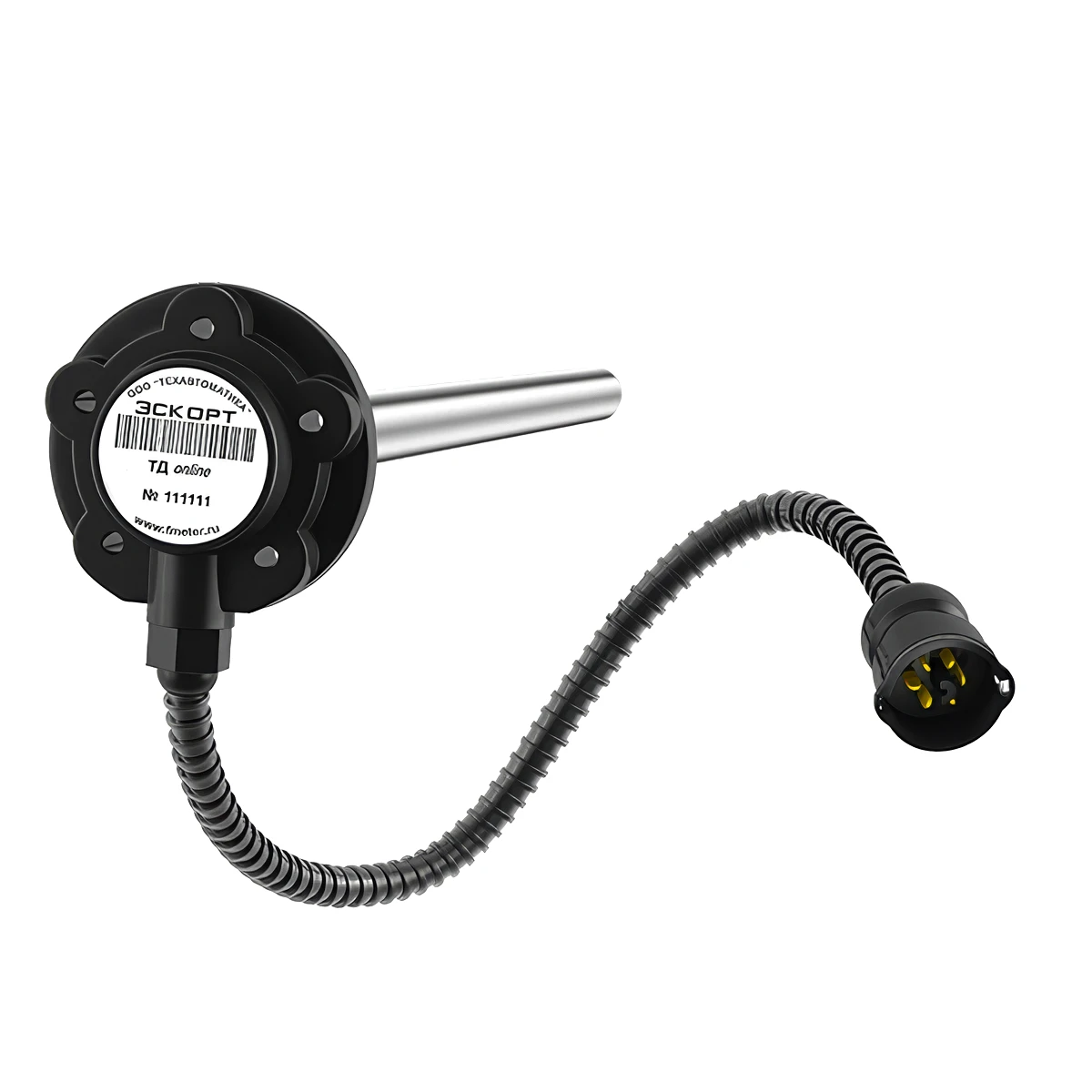

Escort TD online – high-precision fuel level sensor with combined GLONASS/GPS tracker is designed to measure the fuel level in the tank of vehicle, its location, the motion parameters of the vehicle, the control of its aggregates with the subsequent transfer of these data to the monitoring server.

Show more

Escort TD online – a high-precision fuel level sensor combined with GLONASS/GPS tracker in the same device. It allows to measure the fuel level in the tank of vehicle, also its location and motion parameters.

It is very uncommon to integrate GPS tracker with the fuel sensor in such a way and probably it’s the only device in the world with such an original design. It simplifies the installation process since less wiring is required and also reduces the risk of intentional damaging of the system by drivers.

Location and tracking

TD-online model is embedded with GPS chip and also it supports GLONASS navigation. It doesn’t support Assisted GPS (A-GPS) technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).

Mobile networks

TD-online has a Quad-band GSM module, so it can be operated all over the world where 2G networks are supported.

Important: the device has embedded SIM chip, while normal SIM card can’t be used.

Features

TD-online has such features, as:

  • Built-in GLONASS/GPS receiver. Defines the location and parameters of movement of vehicles.
  • Built-in GSM modem. Transmits vehicle parameters on the monitoring server.
  • Built-in antennas. Increase system reliability and significantly reduce the time to install it.
  • Built-in position sensor. Allows you to control the quality of driving.
  • Built-in SIM chip. Ensures uninterrupted connection with the server.
  • The built-in algorithm of counting “active hours”. Allows you to control the operation of the engine without connecting additional wires.
  • Remote configuration (by SMS only) and updating of the firmware.

The sensor allows you to monitor such parameters as :

  • The location and route of movement of the vehicle
  • The level of fuel in the tank
  • The quality of driving of the vehicle by the point system
  • The control routine of the engine
  • Up to 9 additional sensors (RS-485)

Server Integration

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47768
Integrated on19/03/2015

General information

PurposeVehicle
InstallationProfessional
Special form factorFuel level sensor

Housing

Weight1000 g (35.27 oz.)
SizeLx80x80 mm (3.15x3.15 in)

GNSS Location

Internal antenna (GNSS)Yes
External antenna (GNSS)No
GPSYes
GLONASSYes

Connectivity

Cellular network typeGSM Quad Band
Internal antenna (Connection)Yes
Cellular network generation2G

Interfaces

Analog inputsYes
Supported
RS485 interfaceYes

Hardware features

Internal temperature sensorYes
Supported

Hardware extras

Fuel level sensor readingYes
Supported
Fuel temperature sensor readingYes
Supported
Fuel flow meter readingYes
Supported

Tracking features

Tracking modesContinuous

Self monitoring

GNSS signal levelYes
Supported
GNSS satellites fixedYes
Supported
External power source voltageYes
Supported

Remote management

Server connection setup over SMSYes
Supported
Remote device configurationYes (over SMS), Yes
Forced GNSS location update over SMSYes
On request

Certification

CEYes
FCCYes
EACYes
