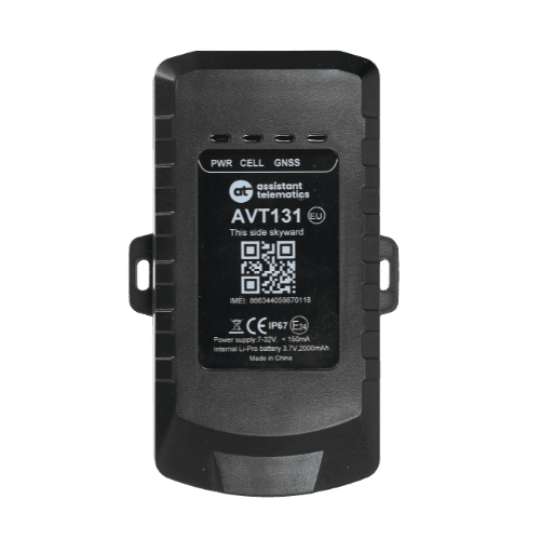

Assistant Telematics AVT131
AVT131 is a rugged 4G LTE Cat.1 GPS tracker with 2G fallback designed for heavy-duty and specialized vehicle applications. Features enhanced ingress protection, making it suitable for harsh environments. Offers extended I/O set, optional RS-232/RS-485, and CAN interface for integration with industrial sensors and onboard systems. Built-in accelerometer supports motion detection and driving behavior analysis. Ideal for construction machinery, agriculture equipment, and high-value asset tracking in demanding conditions.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47638 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 161 g (5.68 oz.) |
| Size | 55x111x26 mm (2.17x4.37x1.02 in) |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
Connectivity information
| Network operator ID | Yes |
| Cellular network type | LTE Cat 1: B1/B3/B5/B7/B8/B20/B28, GSM 850/900/DCS1800/PCS1900 |
| Cellular network generation | LTE CAT-1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Beidou | Yes |
| Assisted GPS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Built-in battery | Yes |
| Battery capacity | 2000 mAh |
Interfaces
| Discrete inputs | 2 |
| Number of outputs | 1 |
| Analog sensor | Yes |
| Frequency sensor | Yes |
| 1-Wire interface | Yes |
| CAN/OBDII reader type | Yes |
Input Fields
State Fields
Events monitoring
