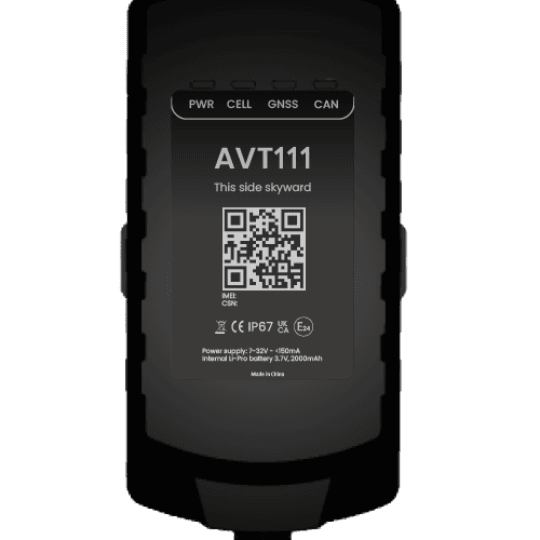

Assistant Telematics AVT111
AVT111 is a compact 4G LTE Cat.1 GPS tracker for fleet and asset monitoring. It features internal GNSS and cellular antennas, digital and analog inputs, 1-Wire for driver ID and sensors, a built-in accelerometer, integrated CAN support for reading vehicle data, and a high-capacity internal battery for autonomous operation. Suitable for applications requiring real-time tracking, driver identification, and onboard diagnostics.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47638 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 50 g (1.76 oz.) |
| Size | 91x52x12 mm (3.58x2.05x0.47 in) |
| Waterproof class | IP54 |
| Internal antenna (GNSS) | Yes |
Connectivity information
| Network operator ID | Yes |
| Cellular network type | LTE Cat 1: B1/B3/B5/B7/B8/B20/B28, 2G: B2/B3/B5/B8 |
| Cellular network generation | LTE Cat 1, 2G |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| GPS | Yes |
| GLONASS | Yes |
| Galileo | Yes |
| Beidou | Yes |
| Assisted GPS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Hardware key | Yes |
| Built-in battery | Yes |
| Battery capacity | 2000 mAh |
Interfaces
| Discrete inputs | 2 |
| Number of outputs | 1 |
| Analog sensor | Yes |
| Frequency sensor | Yes |
| 1-Wire interface | Yes |
| CAN/OBDII reader type | Yes |
Input Fields
State Fields
Events monitoring
