GPS device

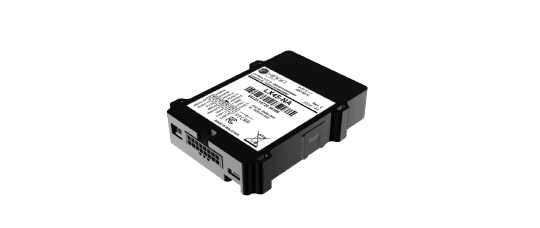

Xirgo LX45 MQTT (IOTM)
Xirgo GlobalThe LX45 is the “superset” model of the LX40 series, combining the serial communication of the LX43 with the vehicle data capabilities of the LX44. It features the same 16-pin connector but offers the most comprehensive interface array: dual CAN-bus ports, RS232, and RS485. This model is designed for the most demanding telematics applications, such as heavy machinery monitoring (J1939/ISOBUS), tachograph file downloads, and specialized agricultural or construction equipment where both vehicle data and diverse external sensors must be managed simultaneously.
Server connection
| MQTT EU | mqtt.eu.navixy.com |
| MQTT US | mqtt.us.navixy.com |
| MQTT MENA | mqtt.me.navixy.com |
| Server port | 1883 |
General information
| Purpose | Vehicle |
| Weight | 140 g |
| Size | 68x91x19 mm |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 4 |
| Number of outputs | 2 |
| Analog sensor | Yes |
Features
| Board Voltage | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
| Altitude | Yes |
| Satellites | Yes |
| Gsm Roaming | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| acceleration | Yes |
| axis_x | Yes |
| axis_y | Yes |
| axis_z | Yes |
| battery_voltage | Yes |
| board_voltage | Yes |
| can_adblue_level | Yes |
| can_axle_load_5 | Yes |
| can_consumption | Yes |
| can_engine_hours | Yes |
| can_engine_load | Yes |
| can_engine_temp | Yes |
| can_fuel_2 | Yes |
| can_fuel_economy | Yes |
| can_fuel_rate | Yes |
| can_mileage | Yes |
| can_rpm | Yes |
| can_speed | Yes |
| can_throttle | Yes |
| cornering | Yes |
| ext_temp_sensor_4 | Yes |
| field_65535 | Yes |
| freq_5 | Yes |
| fuel_level | Yes |
| humidity_1 | Yes |
| hw_mileage | Yes |
| impulse_counter_5 | Yes |
| obd_intake_air_pressure | Yes |
| temp_sensor | Yes |
| user_data_32 | Yes |
