GPS device

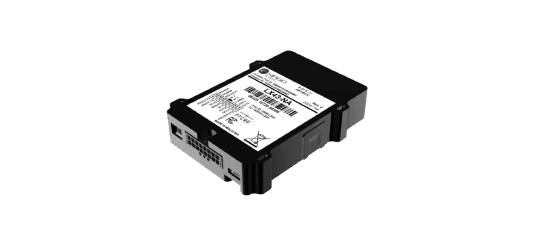

Xirgo LX43 MQTT (IOTM)
Xirgo GlobalThe LX43 is a high-connectivity variant that introduces serial communication for advanced industrial and commercial integrations. Utilizing a 16-pin connector, it maintains the robust I/O of the lower models while adding RS232 and RS485 interfaces. These ports enable the device to communicate with a wide range of external hardware, such as RFID readers, thermal data loggers, and heavy-duty fuel sensors. It is specifically designed for scenarios requiring multi-sensor environments and complex peripheral management without needing native CAN-bus reading.
Server connection
| MQTT EU | mqtt.eu.navixy.com |
| MQTT US | mqtt.us.navixy.com |
| MQTT MENA | mqtt.me.navixy.com |
| Server port | 1883 |
General information
| Purpose | Vehicle |
| Weight | 140 g |
| Size | 68x91x19 mm |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 4 |
| Number of outputs | 4 |
| Analog sensor | Yes |
Features
| Board Voltage | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
| Altitude | Yes |
| Satellites | Yes |
| Gsm Roaming | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| acceleration | Yes |
| axis_x | Yes |
| axis_y | Yes |
| axis_z | Yes |
| battery_voltage | Yes |
| board_voltage | Yes |
| can_adblue_level | Yes |
| can_axle_load_5 | Yes |
| can_consumption | Yes |
| can_engine_hours | Yes |
| can_engine_load | Yes |
| can_engine_temp | Yes |
| can_fuel_2 | Yes |
| can_fuel_economy | Yes |
| can_fuel_rate | Yes |
| can_mileage | Yes |
| can_rpm | Yes |
| can_speed | Yes |
| can_throttle | Yes |
| cornering | Yes |
| ext_temp_sensor_4 | Yes |
| field_65535 | Yes |
| freq_5 | Yes |
| fuel_level | Yes |
| humidity_1 | Yes |
| hw_mileage | Yes |
| impulse_counter_5 | Yes |
| obd_intake_air_pressure | Yes |
| temp_sensor | Yes |
| user_data_32 | Yes |
