GPS device

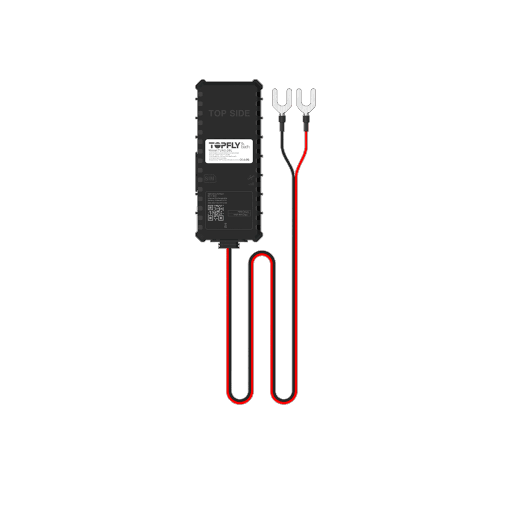

TopFlyTech TLW2-2BL
TopFlyTechTLW2-2BL is the basic hardwired tracker for tracking powered assets and vehicles, with ignition detection and output for relay. It can also monitor the temperature, humidity, door status, etc, when working with BLE sensors. It’s a widely used model in fleet management, logistics, cold chain, etc, to increase work efficiency and save costs.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47744 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 55 g |
| Size | 102.5x42.5x12 mm |
| Waterproof class | IP65 |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 1 |
| Number of outputs | 2 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Temp Sensor | Yes |
| Board Voltage | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Can Use Dns | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| battery_level | Yes |
| battery_voltage | Yes |
| board_voltage | Yes |
| hw_mileage | Yes |
| temp_sensor | Yes |
