GPS device

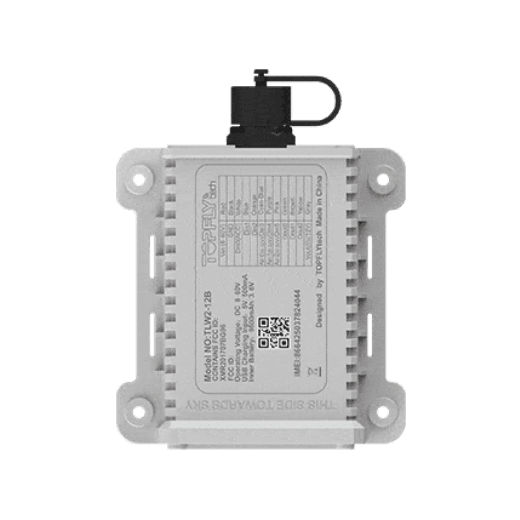

TopFlyTech TLW2-12B
TopFlyTechTopFlyTech TLW2-12B is a device that can be powered when wired and operate on only battery when trailers standing alone (power disconnected). The multiple inputs and outputs could be used for connecting accessories.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47744 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 320 g |
| Size | 132x100x34 mm |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 6 |
| Number of outputs | 4 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Detach Sensor | Yes |
| Temp Sensor | Yes |
| Board Voltage | Yes |
| Gprs Location Request | Yes |
| Sos Button | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Can Use Dns | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| battery_level | Yes |
| battery_voltage | Yes |
| board_voltage | Yes |
| hw_mileage | Yes |
| temp_sensor | Yes |
