GPS device

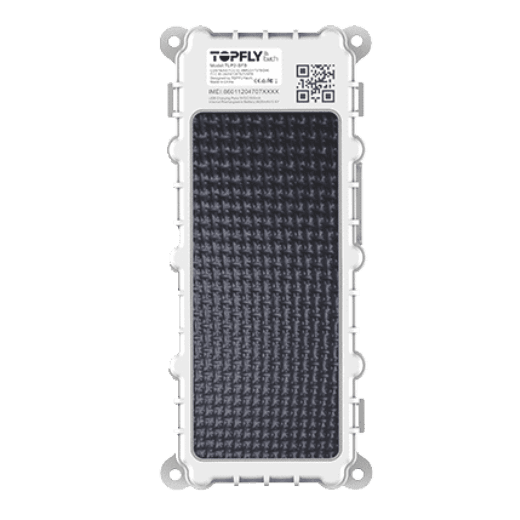

TopFlyTech TLP2-SFB
TopFlyTechTopFlyTech TLP2-SBF is a GPS device for tracking and monitoring assets such as containers, trailers, trucks, etc. It reports alarm to server for events of start moving, stop moving, device removal, etc. It works with BLE temperature sensor, door sensors etc.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47744 |
| Auto registration | Yes |
General information
| Purpose | Asset |
| Weight | 370 g |
| Size | 85x185x31 mm |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
Interfaces
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Detach Sensor | Yes |
| Temp Sensor | Yes |
| Board Voltage | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Can Use Dns | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| battery_level | Yes |
| battery_voltage | Yes |
| board_voltage | Yes |
| hw_mileage | Yes |
| temp_sensor | Yes |
