GPS device

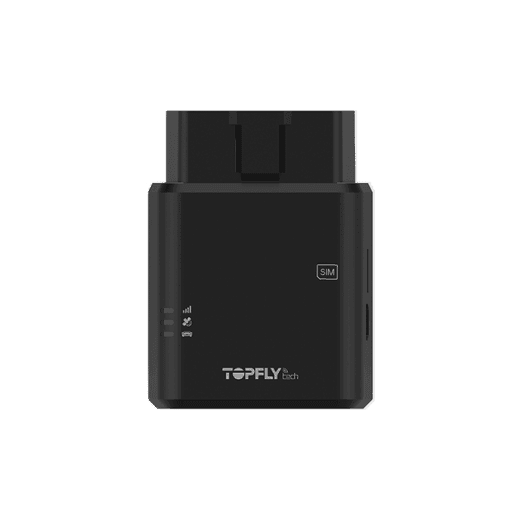

TopFlyTech TLD2-D
TopFlyTechThe Plug & Play OBDII tracker with CAN BUS reading for tracking vehicles and providing insight into vehicle data such as ignition, VIN, odometer, fuel level, etc. When working with BLE sensors it can monitor the temperature, humidity, door status, etc. It’s a vehicle tracker that requires no installation and maintenance but offers powerful functions.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47744 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 48 g |
| Size | 47.8x47.6x19.8 mm |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 1 |
| Number of outputs | 1 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Obd | Yes |
| Board Voltage | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Can Use Dns | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| battery_level | Yes |
| battery_voltage | Yes |
| board_voltage | Yes |
| hw_mileage | Yes |
| obd_consumption | Yes |
| obd_coolant_t | Yes |
| obd_engine_load | Yes |
| obd_fuel | Yes |
| obd_intake_air_pressure | Yes |
| obd_intake_air_t | Yes |
| obd_rpm | Yes |
| obd_speed | Yes |
| obd_throttle | Yes |
