TopFlyTech SolarGuardX 200
    GPS device

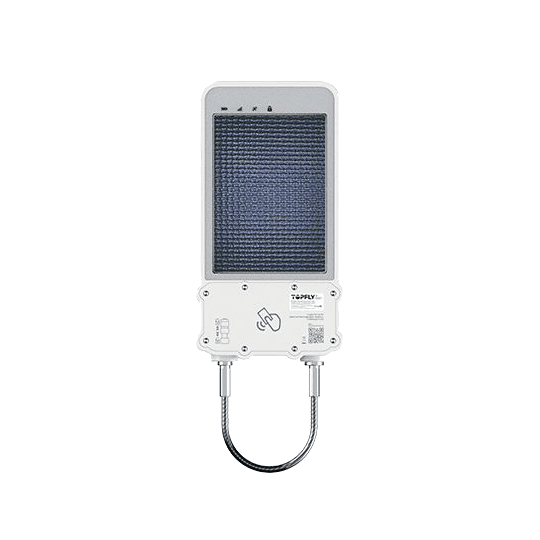

    TopFlyTech SolarGuardX 200

    TopFlyTech

    The TopFlyTech SolarGuardX 200 is a solar-powered GPS padlock with numerous advanced features. It provides real-time location updates as frequently as every 3 seconds and can store up to 49,000 location points in its buffer when out of network coverage. The device is compatible with TOPFLYtech’s BLE temp & humi sensor TSTH1-B, temp & door sensor TSDT1-B, wireless relay TSR1-B, and other sensors. One standout feature is its motion detection capability, which sends alerts for asset moving and parking. The SolarGuardX 100 is solar-powered, using a solar panel to extend battery life and reducing the need for constant charging. Its construction is rugged and durable, suitable for outdoor use, with a thick casing and an IP67 waterproof rating, tested in a 5-meter water pressure environment for 15 hours. The device houses a super long-life rechargeable Li-Polymer 14400mAh/3.6V battery that lasts for months without solar-powered charging. It also has a security alarm for locking, unlocking, and rope cutting, and it can be unlocked via RFID, BLE, OTA, or SMS commands. It comes with a built-in magnet for easy installation on assets and has a built-in geofence for locking, unlocking, and rope cutting. Lastly, it supports Firmware Upgrade Over-the-air (FOTA).

    Server connection

    EU platformtracker.navixy.com (52.57.1.136)
    US platformtracker.us.navixy.com (13.52.37.2)
    MENA platformtracker.me.navixy.com (34.166.104.189)
    Server port47744
    Auto registrationYes

    General information

    Purposeasset,cargo
    Weight1060 g
    Size207.5x110.2x48.1 mm
    Waterproof classIP67
    Internal antenna (GNSS)Yes

    Features

    Auto RegistrationYes
    Temp SensorYes
    Gprs Location RequestYes
    Sos ButtonYes
    OdometerYes
    Gsm LbsYes
    Gsm Signal LevelYes
    Motion sensorYes
    Apn SettingsYes
    Hardware keyYes
    Can Use DnsYes
    Sim CardYes
    SatellitesYes

    State Fields

    State Fields
    • Event code
    • Hardware key
    • Lock state
    • Lock state raw
    • Lock status
    • Moving
    • Status
    • Strap bolt cut

    Inputs and outputs

    battery_levelYes
    battery_voltageYes
    hw_mileageYes
    temp_sensorYes
