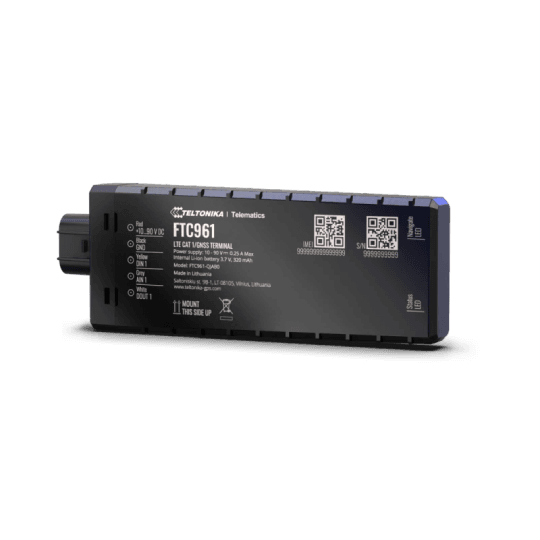

Teltonika FTC961
TeltonikaThe Teltonika Telematics FTC961 is a next-generation, high-voltage 4G LTE Cat 1 vehicle GPS tracker. This fleet GPS tracker is IP69K resistant, making it durable against dust, high-pressure water, and steam. It's equipped with all the essential interfaces necessary for comprehensive fleet monitoring, including one discrete input, one digital output, and one analog input. The device is built on the advanced Fleet Telematics (FT) platform, boasting enhanced firmware and hardware that elevates your tracking experience. It delivers superior GNSS accuracy, capable of detecting up to 41 visible satellites. This feature significantly improves tracking quality for location-based services. One of the standout features of the FTC961 is its optimized sleep modes. These modes enable the device to function independently for prolonged periods, thereby drastically reducing battery drainage from your vehicle.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47776 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 118 g |
| Size | 118x48x18.5 mm |
| Waterproof class | IP69K |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 2 |
| Number of outputs | 1 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Board Voltage | Yes |
| Led Control | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Custom Fields | Yes |
| Zero Battery Level | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
| Gsm Roaming | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| avl_io_100000 | Yes |
| axis_x | Yes |
| axis_y | Yes |
| axis_z | Yes |
| battery_current | Yes |
| battery_voltage | Yes |
| board_voltage | Yes |
| ext_temp_sensor_4 | Yes |
| hw_mileage | Yes |
| impulse_counter_2 | Yes |
| obd_absolute_load_value | Yes |
| obd_barometric_pressure | Yes |
| obd_consumption | Yes |
| obd_control_module_voltage | Yes |
| obd_coolant_t | Yes |
| obd_custom_fuel_litres | Yes |
| obd_custom_odometer | Yes |
| obd_engine_load | Yes |
| obd_fuel | Yes |
| obd_intake_air_t | Yes |
| obd_mil_run_time | Yes |
| obd_oil_temperature | Yes |
| obd_rpm | Yes |
| obd_speed | Yes |
| obd_throttle | Yes |
| obd_time_since_engine_start | Yes |
