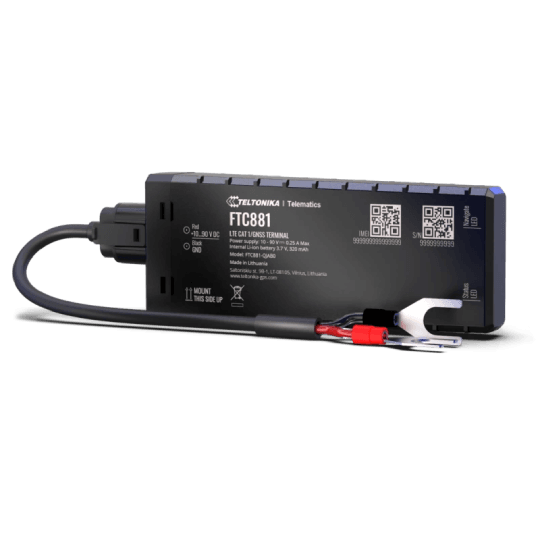

Teltonika FTC881
TeltonikaThe next-generation 4G LTE Cat 1 vehicle GPS tracker Teltonika Telematics FTC881 is a high-voltage, battery-mounted device offering enhanced GNSS accuracy. Built on the sophisticated Fleet Telematics (FT) platform, it provides cutting-edge firmware and hardware that takes tracking experience to a superior level. It features a highly precise GNSS capable of detecting up to 41 visible satellites, thereby significantly improving tracking quality for location-based services. The device is encased in an IP69K waterproof casing, providing ultimate protection against dust, high-pressure water, and steam. The FTC881 also has optimised sleep modes, enabling the device to function independently for longer periods while substantially reducing battery drain in the vehicle. Its extended integration versatility ensures a seamless fit for use in various electric vehicles, including e-motorcycles, e-mopeds, and e-rickshaws.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47776 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 118 g |
| Size | 118x48x18.5 mm |
| Waterproof class | IP69K |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 1 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Board Voltage | Yes |
| Led Control | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Custom Fields | Yes |
| Zero Battery Level | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
| Gsm Roaming | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| avl_io_100000 | Yes |
| axis_x | Yes |
| axis_y | Yes |
| axis_z | Yes |
| battery_current | Yes |
| battery_voltage | Yes |
| board_voltage | Yes |
| ext_temp_sensor_4 | Yes |
| hw_mileage | Yes |
| impulse_counter_2 | Yes |
| obd_absolute_load_value | Yes |
| obd_barometric_pressure | Yes |
| obd_consumption | Yes |
| obd_control_module_voltage | Yes |
| obd_coolant_t | Yes |
| obd_custom_fuel_litres | Yes |
| obd_custom_odometer | Yes |
| obd_engine_load | Yes |
| obd_fuel | Yes |
| obd_intake_air_t | Yes |
| obd_mil_run_time | Yes |
| obd_oil_temperature | Yes |
| obd_rpm | Yes |
| obd_speed | Yes |
| obd_throttle | Yes |
| obd_time_since_engine_start | Yes |
