GPS device

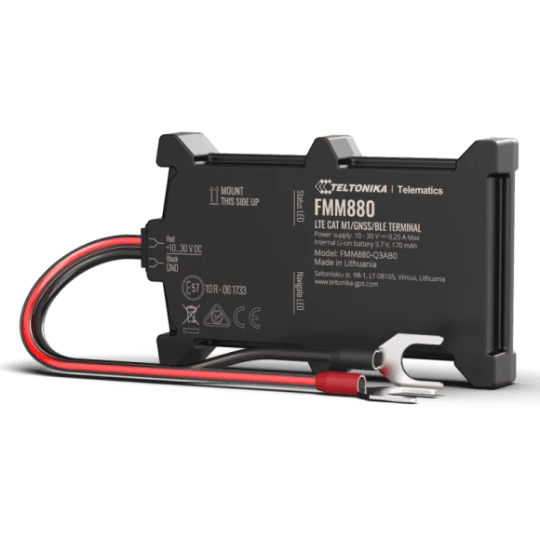

Teltonika FMM880
TeltonikaThe Teltonika Telematics FMM880 is a budget-friendly fleet GPS tracker that offers high GNSS precision. This waterproof, battery-mounted 4G LTE Cat M1 tracker comes with a standalone L1 and L5 dual-band GNSS receiver for superior tracking quality and swift time to first fix. The device can be conveniently mounted on a car battery in less than five minutes, thanks to its user-friendly wiring design. Its IP65-rated casing is crafted to resist adverse weather conditions. Additionally, it supports Bluetooth LE-based wireless connections of external devices such as Low Energy beacons and sensors. This feature enables the monitoring of temperature, humidity, magnet detection, and movement.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47776 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 63 g |
| Size | 92.5x57.6x14 mm |
| Waterproof class | IP65 |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 1 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Board Voltage | Yes |
| Led Control | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Custom Fields | Yes |
| Zero Battery Level | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
| Gsm Roaming | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| avl_io_100000 | Yes |
| axis_x | Yes |
| axis_y | Yes |
| axis_z | Yes |
| battery_current | Yes |
| battery_voltage | Yes |
| board_voltage | Yes |
| ext_temp_sensor_4 | Yes |
| hw_mileage | Yes |
| impulse_counter_2 | Yes |
| obd_absolute_load_value | Yes |
| obd_barometric_pressure | Yes |
| obd_consumption | Yes |
| obd_control_module_voltage | Yes |
| obd_coolant_t | Yes |
| obd_custom_fuel_litres | Yes |
| obd_custom_odometer | Yes |
| obd_engine_load | Yes |
| obd_fuel | Yes |
| obd_intake_air_t | Yes |
| obd_mil_run_time | Yes |
| obd_oil_temperature | Yes |
| obd_rpm | Yes |
| obd_speed | Yes |
| obd_throttle | Yes |
| obd_time_since_engine_start | Yes |
