GPS device

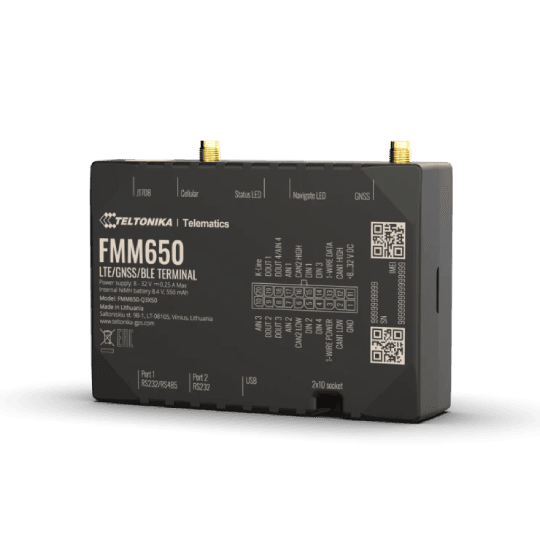

Teltonika FMM650

The Teltonika FMM650 GPS tracker is an updated version of the FMM640, featuring a more powerful processor and a capacious internal memory. This device offers reliable global coverage with support for 4G LTE Cat M1 and NB IoT connectivity, ensuring a wide-ranging coverage of your fleet management needs. The FMM650 uses a separate module to gather GNSS data and has dual-channel L1 + L5 support, allowing for accurate and precise location tracking. One of the key features of this GPS tracker is the ability to remotely download tachograph files and live data, enabling efficient driver management and fleet efficiency. The FMM650 can also read J1939 data from heavy vehicles like trucks and raw J1939 data from special machinery, such as construction cranes or electric buses. Additionally, this device comes equipped with 2x RS232 and 1x RS485 serial communication interfaces for connecting external devices, such as thermographs, sensors, and RFID readers.

Start Free Trial Contact Sales

Server connection

EU platform	tracker.navixy.com (52.57.1.136)
US platform	tracker.us.navixy.com (13.52.37.2)
MENA platform	tracker.me.navixy.com (34.166.104.189)
Server port	47776
Auto registration	Yes

General information

Purpose	Vehicle
Weight	197 g
Size	104.1x76.8x31.5 mm
Waterproof class	IP41
Internal antenna (GNSS)	Yes

Interfaces

Digital inputs	5
Number of outputs	4
Analog sensor	Yes

Features

Auto Registration	Yes
Temp Sensor	Yes
Board Voltage	Yes
Location Request	Yes
Gprs Location Request	Yes
Odometer	Yes
Gsm Lbs	Yes
Gsm Signal Level	Yes
Motion sensor	Yes
Apn Settings	Yes
Hardware key	Yes
Hardware Key Attach Type	Yes
Custom Fields	Yes
Zero Battery Level	Yes
Altitude	Yes
Sim Card	Yes
Satellites	Yes
Gsm Roaming	Yes

State Fields

•Can abs state
•Can additional front fog lights
•Can additional rear lights
•Can air conditioning
•Can airbag state
•Can automatic retarder
•Can brake pad wear
•Can central diff 4hi locked
•Can central diff 4lo locked
•Can clutch state
•Can coolant temp or level
•Can cruise control
•Can dipped headlights
•Can door state
•Can electronics power control
•Can engine state
•Can eps state
•Can footbrake state
•Can front diff locked
•Can front fog lights
•Can front left door
•Can front passenger presence
•Can front right door
•Can full beam headlights
•Can glow plug indicator
•Can hand brake state
•Can hood state
•Can ignition state
•Can light signal
•Can lights failure
•Can low fuel
•Can low tire pressure
•Can manual retarder
•Can oil pressure or level
•Can parking lights
•Can pto state
•Can ready to drive
•Can rear centre seat belt state
•Can rear diff locked
•Can rear fog lights
•Can rear left door
•Can rear left seat belt state
•Can rear right door
•Can rear right seat belt state
•Can roof state
•Can seat belt driver state
•Can seat belt passenger state
•Can trailer axle lift active 2
•Can trunk state
•Can warning
•Can webasto state
•Event code
•Hardware key
•Moving
•Obd vin
•Tacho card1 sn
•Tacho card2 sn

Inputs and outputs

avl_io_100000	Yes
board_voltage	Yes
can_adblue_level	Yes
can_axle_load_5	Yes
can_battery_level	Yes
can_battery_temperature	Yes
can_battery_voltage	Yes
can_consumption	Yes
can_consumption_relative	Yes
can_engine_hours	Yes
can_engine_hours_relative	Yes
can_engine_load	Yes
can_engine_oil_level	Yes
can_engine_temp	Yes
can_fuel_2	Yes
can_fuel_economy	Yes
can_fuel_litres	Yes
can_fuel_rate	Yes
can_mileage	Yes
can_mileage_relative	Yes
can_rpm	Yes
can_speed	Yes
can_throttle	Yes
ext_temp_sensor_6	Yes
humidity_6	Yes
hw_mileage	Yes
impulse_counter_2	Yes
lls_level_5	Yes
lls_temperature_5	Yes
raw_can_10	Yes
tacho_mileage	Yes
tacho_speed	Yes
temp_sensor	Yes
