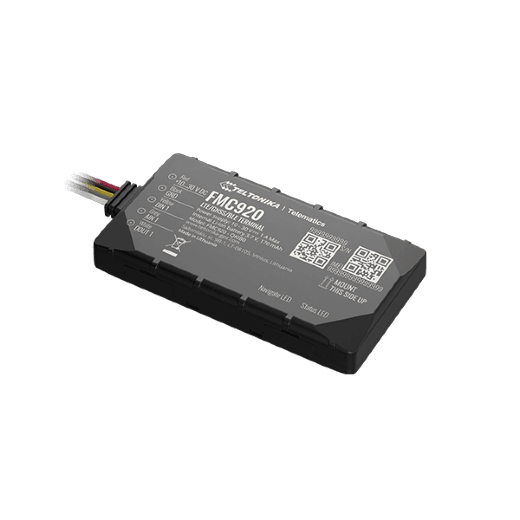

Teltonika FMC920
    GPS device

    Teltonika FMC920

    Teltonika

    Teltonika FMC920 is a small and smart tracker with Bluetooth connectivity, internal High Gain GNSS and GSM antennas and an integrated backup battery. The 4G Cat 1 technology offers much higher bandwidth, lower latency and improved spectrum efficiency. The model is compact, reliable, accurate and enduring. All the interfaces it has are more than enough for basic tracking. Digital Input can be used for ignition, door or alarm button status monitoring, while vehicle remote immobilizing may be achieved by using the Digital Output of the device. At the same time, Analog Input extends device usage scenarios with temperature, humidity, liquid level monitoring and many more. All of that brings unquestionable value to numerous market segments and societies, countries’ budgets and the global economy overall. It can be perfectly adapted to any fleet and any transportation. The far-reaching experience of the FMC920 predecessor shows that it is a perfect choice for basic track & trace and fleet management.

    Server connection

    EU platformtracker.navixy.com (52.57.1.136)
    US platformtracker.us.navixy.com (13.52.37.2)
    MENA platformtracker.me.navixy.com (34.166.104.189)
    Server port47776
    Auto registrationYes

    General information

    PurposeVehicle
    Weight54 g
    Size79x43x12 mm
    Waterproof classIP54
    Internal antenna (GNSS)Yes

    Interfaces

    Digital inputs2
    Number of outputs1
    Analog sensorYes

    Features

    Auto RegistrationYes
    Board VoltageYes
    Led ControlYes
    Location RequestYes
    Gprs Location RequestYes
    OdometerYes
    Gsm LbsYes
    Gsm Signal LevelYes
    Motion sensorYes
    Apn SettingsYes
    Hardware keyYes
    Custom FieldsYes
    Zero Battery LevelYes
    AltitudeYes
    Sim CardYes
    SatellitesYes
    Gsm RoamingYes

    State Fields

    State Fields
    • Ble beacon id
    • Ble magnet sensor 4
    • Event code
    • Hardware key
    • Moving
    • Obd dtc cleared distance
    • Obd dtc codes
    • Obd dtc number
    • Obd mil activated distance
    • Obd mil status
    • Obd vin

    Inputs and outputs

    avl_io_100000Yes
    axis_xYes
    axis_yYes
    axis_zYes
    battery_currentYes
    battery_voltageYes
    board_voltageYes
    ext_temp_sensor_4Yes
    hw_mileageYes
    impulse_counter_1Yes
    obd_absolute_load_valueYes
    obd_barometric_pressureYes
    obd_consumptionYes
    obd_control_module_voltageYes
    obd_coolant_tYes
    obd_custom_fuel_litresYes
    obd_custom_odometerYes
    obd_engine_loadYes
    obd_fuelYes
    obd_intake_air_tYes
    obd_mil_run_timeYes
    obd_oil_temperatureYes
    obd_rpmYes
    obd_speedYes
    obd_throttleYes
    obd_time_since_engine_startYes
