Teltonika FMC650
    GPS device

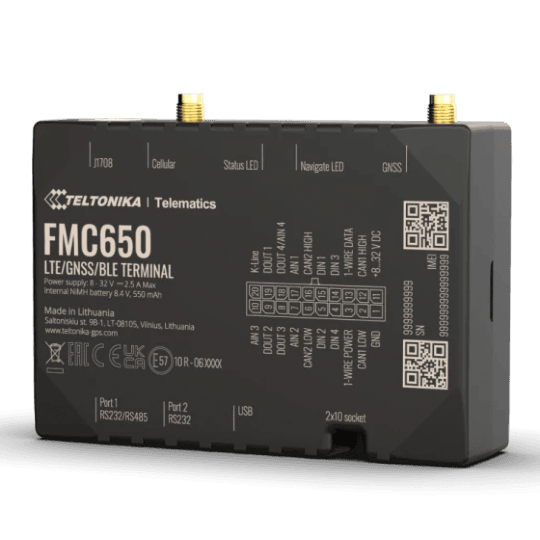

    Teltonika FMC650

    Teltonika

    The FMC650 model from Teltonika Telematics is a professional GPS tracker for fleet management that offers reliable global coverage and a separate GNSS module for accurate tracking. With a 4G connection that falls back to a 2G network, you can be sure that your vehicles will always be connected. The separate GNSS module has dual-channel support for both L1 and L5 frequencies, ensuring precise location data. In addition to tracking vehicle location, the FMC650 also offers remote download of tachograph files and live data. You can read tachograph live data via K-Line, ALL-CAN, Tacho CAN or FMS connections for everyday driver management and fleet efficiency. The system also supports CAN data reading from heavy vehicles and special machinery, including J1939 data from trucks and raw J1939 data from construction cranes or electric buses without any additional CAN adapters. With the possibility to connect to CAN line with multiple nodes, this system is highly adaptable to any fleet management needs. Finally, the FMC650 offers 2x RS232 and 1x RS485 serial communication interfaces for connecting external devices like temperature and fuel level sensors, RFID readers and more, making it a comprehensive solution for all your fleet management requirements.

    Server connection

    EU platformtracker.navixy.com (52.57.1.136)
    US platformtracker.us.navixy.com (13.52.37.2)
    MENA platformtracker.me.navixy.com (34.166.104.189)
    Server port47776
    Auto registrationYes

    General information

    PurposeVehicle
    Weight197 g
    Size104.1x76.8x31.5 mm
    Waterproof classIP41
    Internal antenna (GNSS)Yes

    Interfaces

    Digital inputs5
    Number of outputs4
    Analog sensorYes

    Features

    Auto RegistrationYes
    Temp SensorYes
    Board VoltageYes
    Location RequestYes
    Gprs Location RequestYes
    OdometerYes
    Gsm LbsYes
    Gsm Signal LevelYes
    Motion sensorYes
    Apn SettingsYes
    Hardware keyYes
    Hardware Key Attach TypeYes
    Custom FieldsYes
    Zero Battery LevelYes
    AltitudeYes
    Sim CardYes
    SatellitesYes
    Gsm RoamingYes

    State Fields

    State Fields
    • Can abs state
    • Can additional front fog lights
    • Can additional rear lights
    • Can air conditioning
    • Can airbag state
    • Can automatic retarder
    • Can brake pad wear
    • Can central diff 4hi locked
    • Can central diff 4lo locked
    • Can clutch state
    • Can coolant temp or level
    • Can cruise control
    • Can dipped headlights
    • Can door state
    • Can electronics power control
    • Can engine state
    • Can eps state
    • Can footbrake state
    • Can front diff locked
    • Can front fog lights
    • Can front left door
    • Can front passenger presence
    • Can front right door
    • Can full beam headlights
    • Can glow plug indicator
    • Can hand brake state
    • Can hood state
    • Can ignition state
    • Can light signal
    • Can lights failure
    • Can low fuel
    • Can low tire pressure
    • Can manual retarder
    • Can oil pressure or level
    • Can parking lights
    • Can pto state
    • Can ready to drive
    • Can rear centre seat belt state
    • Can rear diff locked
    • Can rear fog lights
    • Can rear left door
    • Can rear left seat belt state
    • Can rear right door
    • Can rear right seat belt state
    • Can roof state
    • Can seat belt driver state
    • Can seat belt passenger state
    • Can trailer axle lift active 2
    • Can trunk state
    • Can warning
    • Can webasto state
    • Event code
    • Hardware key
    • Moving
    • Obd vin
    • Tacho card1 sn
    • Tacho card2 sn

    Inputs and outputs

    avl_io_100000Yes
    board_voltageYes
    can_adblue_levelYes
    can_axle_load_5Yes
    can_battery_levelYes
    can_battery_temperatureYes
    can_battery_voltageYes
    can_consumptionYes
    can_consumption_relativeYes
    can_engine_hoursYes
    can_engine_hours_relativeYes
    can_engine_loadYes
    can_engine_oil_levelYes
    can_engine_tempYes
    can_fuel_2Yes
    can_fuel_economyYes
    can_fuel_litresYes
    can_fuel_rateYes
    can_mileageYes
    can_mileage_relativeYes
    can_rpmYes
    can_speedYes
    can_throttleYes
    ext_temp_sensor_6Yes
    humidity_6Yes
    hw_mileageYes
    impulse_counter_2Yes
    lls_level_5Yes
    lls_temperature_5Yes
    raw_can_10Yes
    tacho_mileageYes
    tacho_speedYes
    temp_sensorYes
