GPS device

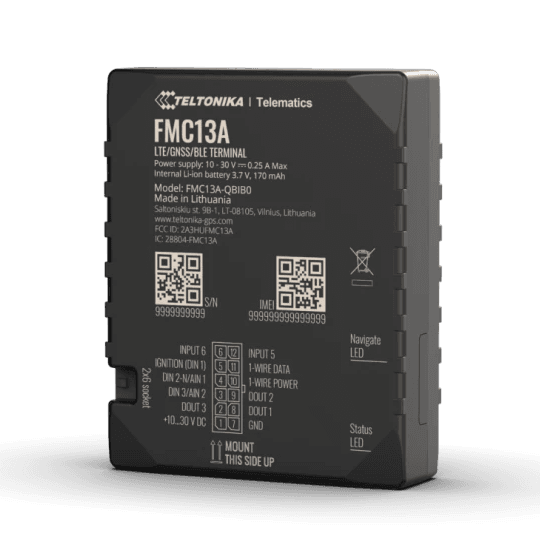

Teltonika FMC13A
TeltonikaTeltonika Telematics FMC13A GPS tracker is a revolutionary device that can help with the management and control of any fleet. It supports LTE Cat 1, 3G and 2G networks, making it very versatile. Additionally, the Impulse input for fuel flow meters data reading enables precise fuel usage control. With this device, you can read fuel level, odometer, RPM, engine temperature and more data from light & electric vehicles, trucks, buses and special machinery via an external CAN adapter. On top of that, you can also benefit from other fleet control measures such as blocking engine remotely.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47776 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 69 g |
| Size | 77x62x20 mm |
| Waterproof class | IP41 |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 4 |
| Number of outputs | 3 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Obd | Yes |
| Board Voltage | Yes |
| Led Control | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Hardware Key Attach Type | Yes |
| Custom Fields | Yes |
| Zero Battery Level | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
| Gsm Roaming | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| avl_io_100000 | Yes |
| axis_x | Yes |
| axis_y | Yes |
| axis_z | Yes |
| battery_current | Yes |
| battery_voltage | Yes |
| board_voltage | Yes |
| can_adblue_level | Yes |
| can_axle_load_5 | Yes |
| can_battery_level | Yes |
| can_battery_temperature | Yes |
| can_battery_voltage | Yes |
| can_consumption | Yes |
| can_consumption_relative | Yes |
| can_engine_hours | Yes |
| can_engine_hours_relative | Yes |
| can_engine_load | Yes |
| can_engine_oil_level | Yes |
| can_engine_temp | Yes |
| can_fuel_1 | Yes |
| can_fuel_economy | Yes |
| can_fuel_litres | Yes |
| can_fuel_rate | Yes |
| can_mileage | Yes |
| can_mileage_relative | Yes |
| can_rpm | Yes |
| can_speed | Yes |
| can_throttle | Yes |
| ext_temp_sensor_4 | Yes |
| hw_mileage | Yes |
| impulse_counter_2 | Yes |
| lls_level_5 | Yes |
| lls_temperature_5 | Yes |
| obd_absolute_load_value | Yes |
| obd_barometric_pressure | Yes |
| obd_consumption | Yes |
| obd_control_module_voltage | Yes |
| obd_coolant_t | Yes |
| obd_custom_fuel_litres | Yes |
| obd_custom_odometer | Yes |
| obd_engine_load | Yes |
| obd_fuel | Yes |
| obd_intake_air_t | Yes |
| obd_mil_run_time | Yes |
| obd_oil_temperature | Yes |
| obd_rpm | Yes |
| obd_speed | Yes |
| obd_throttle | Yes |
| obd_time_since_engine_start | Yes |
| tacho_mileage | Yes |
| tacho_speed | Yes |
