GPS device

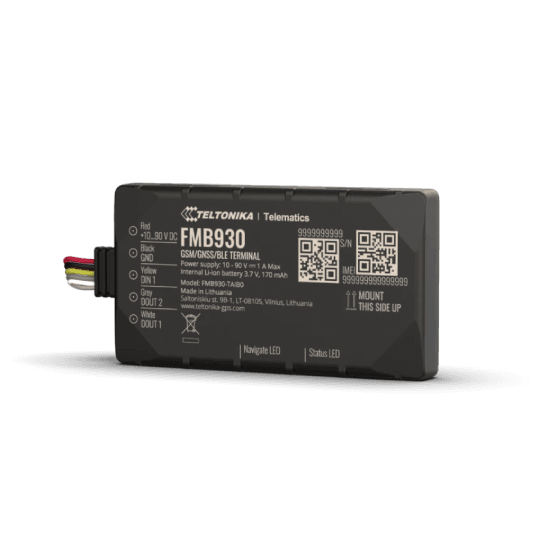

Teltonika FMB930
TeltonikaThe Teltonika FMB930 is a highly efficient device with an ultra-low power consumption of only 1mA, thanks to its innovative Power Off sleep mode. Its wide power supply range enables easy integration with various devices, making it ideal for use in e-motorcycles, e-mopeds, e-rickshaws, and other vehicles. The FMB930 also boasts extended product usage scenarios as it can wirelessly connect to external devices using Bluetooth LE technology. This connection allows for the monitoring of various metrics such as temperature, humidity, magnet detection, and movement through the use of Low Energy beacons and sensors. In addition, the device features a 170 mAh backup battery that enables operation without an external power source.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47776 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 54 g |
| Size | 79x43x12 mm |
| Waterproof class | IP54 |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 2 |
| Number of outputs | 2 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Board Voltage | Yes |
| Led Control | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Custom Fields | Yes |
| Zero Battery Level | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
| Gsm Roaming | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| avl_io_100000 | Yes |
| axis_x | Yes |
| axis_y | Yes |
| axis_z | Yes |
| battery_current | Yes |
| battery_voltage | Yes |
| board_voltage | Yes |
| ext_temp_sensor_4 | Yes |
| hw_mileage | Yes |
| impulse_counter_1 | Yes |
| obd_absolute_load_value | Yes |
| obd_barometric_pressure | Yes |
| obd_consumption | Yes |
| obd_control_module_voltage | Yes |
| obd_coolant_t | Yes |
| obd_custom_fuel_litres | Yes |
| obd_custom_odometer | Yes |
| obd_engine_load | Yes |
| obd_fuel | Yes |
| obd_intake_air_t | Yes |
| obd_mil_run_time | Yes |
| obd_oil_temperature | Yes |
| obd_rpm | Yes |
| obd_speed | Yes |
| obd_throttle | Yes |
| obd_time_since_engine_start | Yes |
