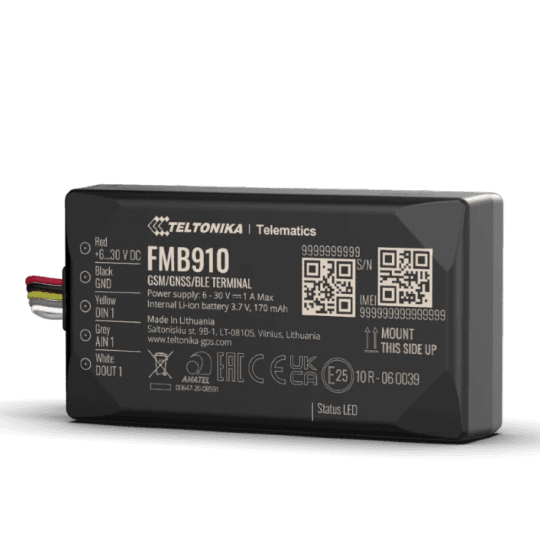

Teltonika FMB910
TeltonikaThe Teltonika Telematics FMB910 is an affordable GPS tracker designed for basic fleet management. This device offers extended product usage scenarios through its Bluetooth LE-based wireless connection, allowing for the monitoring of temperature, humidity, magnet detection, and movement with external devices like Low Energy beacons and sensors. With extensive remote monitoring possibilities, this tracker provides numerous fleet control measures, including the ability to remotely block the engine. In addition, the FMB910 features an eco driving scenario for all-round better driving, achieving efficient fuel consumption, prolonging vehicle life, and increasing road safety. The device can operate without an external power source due to its 170 mAh back-up battery.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47776 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 69 g |
| Size | 78.15x42.75x21 mm |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 2 |
| Number of outputs | 1 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Board Voltage | Yes |
| Led Control | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Custom Fields | Yes |
| Zero Battery Level | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
| Gsm Roaming | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| avl_io_100000 | Yes |
| axis_x | Yes |
| axis_y | Yes |
| axis_z | Yes |
| battery_current | Yes |
| battery_voltage | Yes |
| board_voltage | Yes |
| ext_temp_sensor_4 | Yes |
| hw_mileage | Yes |
| obd_absolute_load_value | Yes |
| obd_barometric_pressure | Yes |
| obd_consumption | Yes |
| obd_control_module_voltage | Yes |
| obd_coolant_t | Yes |
| obd_custom_fuel_litres | Yes |
| obd_custom_odometer | Yes |
| obd_engine_load | Yes |
| obd_fuel | Yes |
| obd_intake_air_t | Yes |
| obd_mil_run_time | Yes |
| obd_oil_temperature | Yes |
| obd_rpm | Yes |
| obd_speed | Yes |
| obd_throttle | Yes |
| obd_time_since_engine_start | Yes |
