GPS device

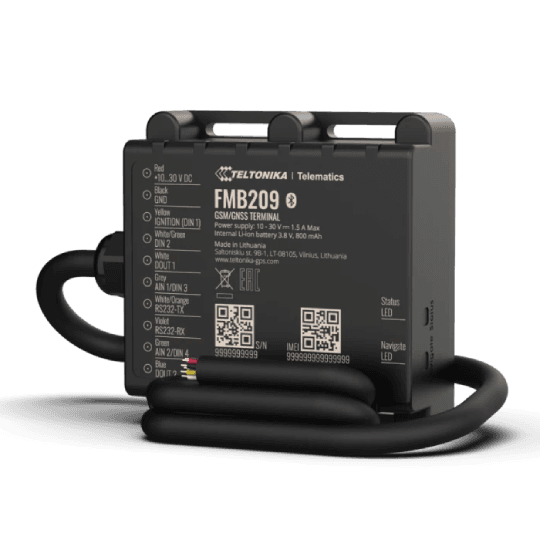

Teltonika FMB209
TeltonikaTeltonika FMB209 is a water-resistant 2G fleet GPS tracker certified for Europe market. Device has large-capacity 800 mAh li-ion battery and various interfaces such as 2 discrete inputs, 2 analog inputs and 2 digital outputs to control external systems such as vehicle engine and others. Teltonika FMB209 has RS232 port that can be used for digital fuel level and temperature sensors. This model has built-in accelerometer for harsh driving and car crash alerts. With the help of BLE support this device can also work with Bluetooth sensors and OBDII dongles.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47776 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 205 g |
| Size | 72.5x73x27.3 mm |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 5 |
| Number of outputs | 2 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Board Voltage | Yes |
| Led Control | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Custom Fields | Yes |
| Zero Battery Level | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
| Gsm Roaming | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| avl_io_100000 | Yes |
| axis_x | Yes |
| axis_y | Yes |
| axis_z | Yes |
| battery_current | Yes |
| battery_voltage | Yes |
| board_voltage | Yes |
| ext_temp_sensor_4 | Yes |
| hw_mileage | Yes |
| impulse_counter_2 | Yes |
| lls_level_2 | Yes |
| lls_temperature_2 | Yes |
| obd_absolute_load_value | Yes |
| obd_barometric_pressure | Yes |
| obd_consumption | Yes |
| obd_control_module_voltage | Yes |
| obd_coolant_t | Yes |
| obd_custom_fuel_litres | Yes |
| obd_custom_odometer | Yes |
| obd_engine_load | Yes |
| obd_fuel | Yes |
| obd_intake_air_t | Yes |
| obd_mil_run_time | Yes |
| obd_oil_temperature | Yes |
| obd_rpm | Yes |
| obd_speed | Yes |
| obd_throttle | Yes |
| obd_time_since_engine_start | Yes |
| rs232_1 | Yes |
