GPS device

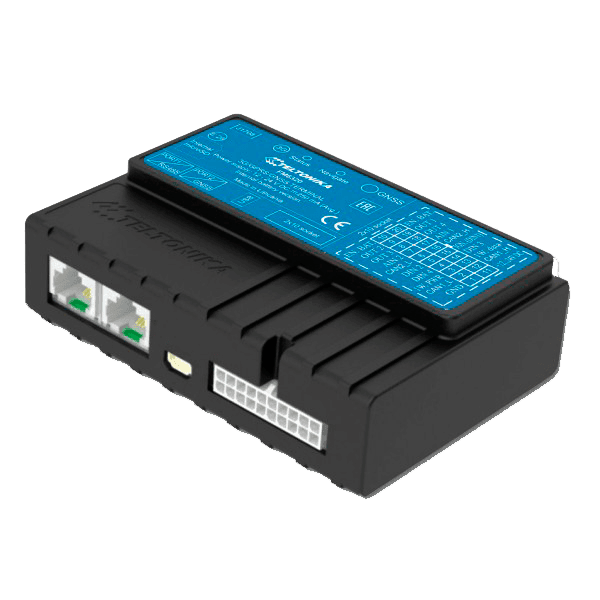

Teltonika FM6320
TeltonikaTeltonika FM6320 is real-time advanced tracking terminal with GNSS and 3G/GSM connectivity with backup battery, which is able to collect device coordinates and other useful data and transfer them via 3G/GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47776 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 80 g |
Interfaces
| Digital inputs | 5 |
| Number of outputs | 4 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Temp Sensor | Yes |
| Board Voltage | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Custom Fields | Yes |
| Zero Battery Level | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| avl_io_100000 | Yes |
| board_voltage | Yes |
| can_axle_load_5 | Yes |
| can_consumption | Yes |
| can_consumption_relative | Yes |
| can_engine_hours | Yes |
| can_engine_hours_relative | Yes |
| can_engine_load | Yes |
| can_engine_temp | Yes |
| can_fuel_1 | Yes |
| can_fuel_economy | Yes |
| can_fuel_rate | Yes |
| can_mileage | Yes |
| can_mileage_relative | Yes |
| can_rpm | Yes |
| can_speed | Yes |
| can_throttle | Yes |
| ext_temp_sensor_3 | Yes |
| hw_mileage | Yes |
| impulse_counter_2 | Yes |
| lls_level_5 | Yes |
| lls_temperature_5 | Yes |
| raw_can_10 | Yes |
| temp_sensor | Yes |
