GPS device

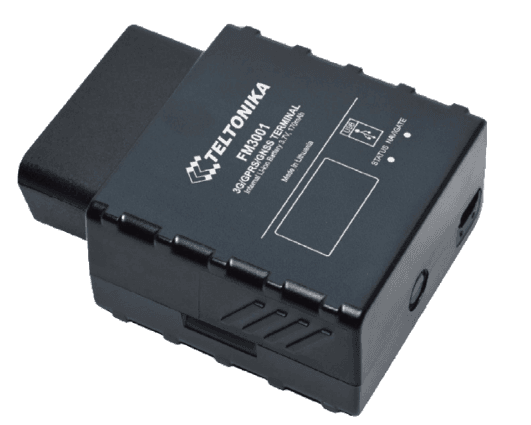

Teltonika FM3001
TeltonikaTeltonika FM3001 is EASY OBDII Plug and Play tracker with GNSS, 3G and Bluetooth connectivity. FM3001 is perfectly suitable for light vehicle tracking in applications like courier delivery service, car rental & leasing, insurance telematics and many other where simple integration is a must. FM3001 has additional feature – reading OBDII data from on-board computer. Device supports hands free,firmware and configuration update via Bluetooth. 3G feature makes this device usable worldwide.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47776 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 63 g |
Interfaces
| Digital inputs | 1 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Obd | Yes |
| Board Voltage | Yes |
| Led Control | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Custom Fields | Yes |
| Zero Battery Level | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
| Gsm Roaming | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| avl_io_100000 | Yes |
| axis_x | Yes |
| axis_y | Yes |
| axis_z | Yes |
| battery_current | Yes |
| battery_voltage | Yes |
| board_voltage | Yes |
| hw_mileage | Yes |
| obd_absolute_load_value | Yes |
| obd_barometric_pressure | Yes |
| obd_consumption | Yes |
| obd_control_module_voltage | Yes |
| obd_coolant_t | Yes |
| obd_custom_fuel_litres | Yes |
| obd_custom_odometer | Yes |
| obd_engine_load | Yes |
| obd_fuel | Yes |
| obd_intake_air_t | Yes |
| obd_mil_run_time | Yes |
| obd_oil_temperature | Yes |
| obd_rpm | Yes |
| obd_speed | Yes |
| obd_throttle | Yes |
| obd_time_since_engine_start | Yes |
