GPS device

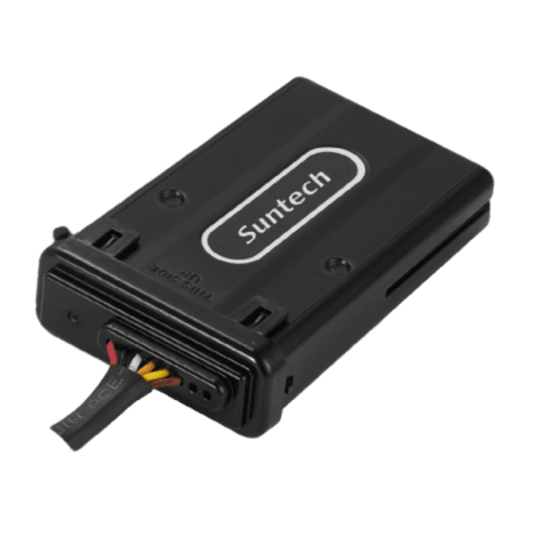

Suntech ST8310
SuntechSuntech ST8310 is a telemetry device used for tracking vehicles, making it ideal for fleet management and vehicle security/logistics applications. This device is a derivative of the ST8300 model and features internal antennas, a lithium-ion battery, and a waterproof enclosure. It includes all the standard functions of an Automatic Vehicle Locator (AVL). Additionally, it's equipped with a 3-axis accelerometer for Driving Pattern Analysis (DPA), which provides information including crash and collision alerts.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47728 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 103 g |
| Size | 94x55x23 mm |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 2 |
| Number of outputs | 2 |
Features
| Satellites | Yes |
| Auto Registration | Yes |
| Board Voltage | Yes |
| Gprs Location Request | Yes |
| Sos Button | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Sim Card | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| alt_large_assign_8 | Yes |
| alt_medium_assign_8 | Yes |
| alt_small_assign_15 | Yes |
| board_voltage | Yes |
| hw_mileage | Yes |
| stt_large_assign_8 | Yes |
| stt_medium_assign_8 | Yes |
| stt_small_assign_15 | Yes |
