GPS device

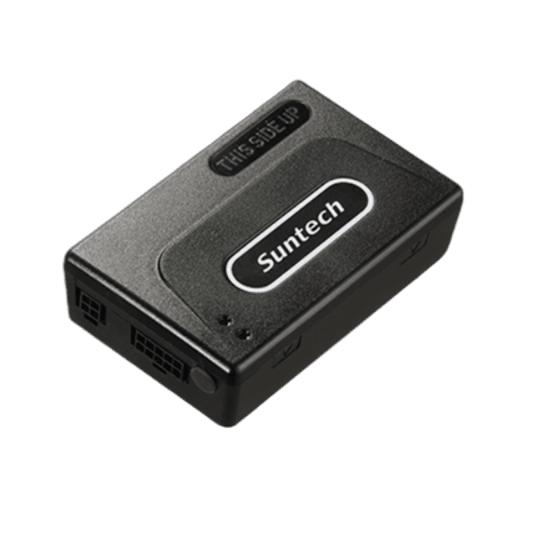

Suntech ST8300R
SuntechThe ST8300R is a telemetry device designed for tracking vehicles. It provides the ability to generate alerts for crashes or collisions and enables precise tracing of the vehicle's traveled routes. This device also allows for continuous monitoring of the vehicle. Equipped with multiple inputs and outputs, the ST8300R can be used to implement a variety of security solutions. In essence, the ST8300R offers a comprehensive solution for your vehicle tracking and communication needs.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47728 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 115 g |
| Size | 90.2x58x26.2 mm |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 3 |
| Number of outputs | 2 |
Features
| Satellites | Yes |
| Auto Registration | Yes |
| Board Voltage | Yes |
| Gprs Location Request | Yes |
| Sos Button | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Sim Card | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| alt_large_assign_8 | Yes |
| alt_medium_assign_8 | Yes |
| alt_small_assign_15 | Yes |
| board_voltage | Yes |
| can_engine_load | Yes |
| can_engine_temp | Yes |
| can_fuel_1 | Yes |
| can_fuel_economy | Yes |
| can_mileage | Yes |
| can_oil_pressure | Yes |
| can_rpm | Yes |
| can_speed | Yes |
| can_total_fuel_used | Yes |
| can_trip_fuel_used | Yes |
| ext_temp_sensor_8 | Yes |
| hw_mileage | Yes |
| rs232_2 | Yes |
| rs485_4 | Yes |
| stt_large_assign_8 | Yes |
| stt_medium_assign_8 | Yes |
| stt_small_assign_15 | Yes |
