GPS device

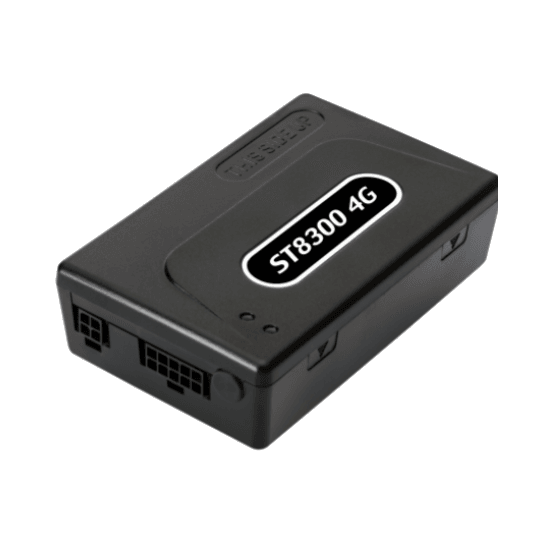

Suntech ST8300
SuntechThe Suntech ST8300 is a compact and versatile GPS tracking device that offers a range of features for various tracking applications. It supports 4G LTE Cat1 for fast and reliable data transmission, with fallback to 2G for wider coverage. Ideal device for fleet management, asset or personal tracking. Reliable for I-Button reader, temperature sensor and RS232 serial communication for external devices which makes a suitable device for tracking projects.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47728 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 115 g |
| Size | 90x58x26 mm |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 4 |
| Number of outputs | 3 |
| Analog sensor | Yes |
Features
| Satellites | Yes |
| Auto Registration | Yes |
| Board Voltage | Yes |
| Gprs Location Request | Yes |
| Sos Button | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Sim Card | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| alt_large_assign_8 | Yes |
| alt_medium_assign_8 | Yes |
| alt_small_assign_15 | Yes |
| board_voltage | Yes |
| can_engine_load | Yes |
| can_engine_temp | Yes |
| can_fuel_1 | Yes |
| can_fuel_economy | Yes |
| can_mileage | Yes |
| can_oil_pressure | Yes |
| can_rpm | Yes |
| can_speed | Yes |
| can_total_fuel_used | Yes |
| can_trip_fuel_used | Yes |
| ext_temp_sensor_8 | Yes |
| hw_mileage | Yes |
| rs232_2 | Yes |
| rs485_4 | Yes |
| stt_large_assign_8 | Yes |
| stt_medium_assign_8 | Yes |
| stt_small_assign_15 | Yes |
