GPS device
Suntech ST4955LCBW

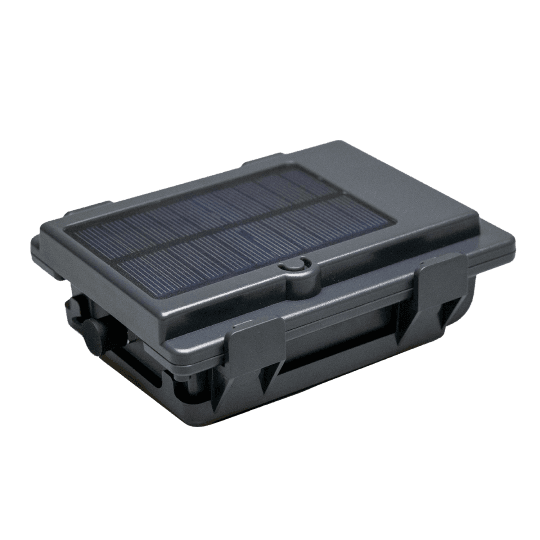

SuntechThe Suntech ST4955LCBW asset tracker is a telemetry device that is used to manage both fixed and mobile assets, whether they have a local power supply or not. It is compatible with LTE-M, NB2-IoT, and GPRS networks for data transmission. The device is equipped with a 3-axis accelerometer and a solar micropanel, which helps to extend the battery life. These features make the Suntech ST4955LCBW an autonomous solution for advanced asset tracking. LCBW version has a Bluetooth connectivity for ELA Bluetooth sensors.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47728 |
| Auto registration | Yes |
General information
| Purpose | Asset |
| Weight | 300 g |
| Size | 96x130x41.3 mm |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
Features
| Satellites | Yes |
| Auto Registration | Yes |
| Board Voltage | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Sim Card | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| alt_large_assign_8 | Yes |
| alt_medium_assign_8 | Yes |
| alt_small_assign_15 | Yes |
| board_voltage | Yes |
| hw_mileage | Yes |
| stt_large_assign_8 | Yes |
| stt_medium_assign_8 | Yes |
| stt_small_assign_15 | Yes |
