GPS device

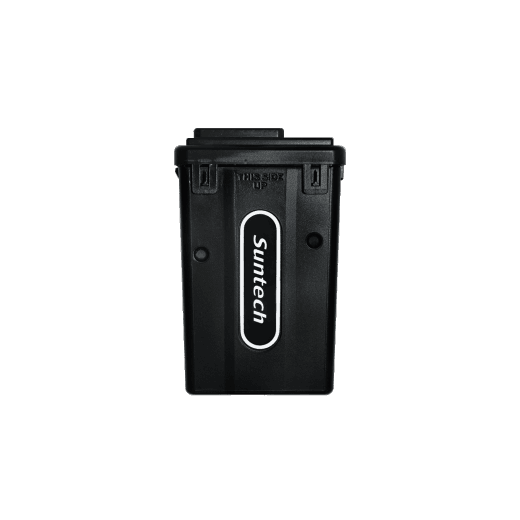

Suntech ST4315U
SuntechTelemetry device for vehicle tracking, intended for fleet management, insurance companies and security and/or logistics companies. Designed to work with LTE – Cat M1, NB2-IoT, 2G networks. The tracker has internal antennas, lithium-ion battery, waterproof enclosure and all standard AVL functions. Also, a 3-axis accelerometer for DPA (Driving Pattern Analysis, including crash and collision alerts) information.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47728 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Size | 94x55x23 mm |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 3 |
| Number of outputs | 1 |
Features
| Satellites | Yes |
| Auto Registration | Yes |
| Board Voltage | Yes |
| Gprs Location Request | Yes |
| Sos Button | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Sim Card | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| alt_large_assign_8 | Yes |
| alt_medium_assign_8 | Yes |
| alt_small_assign_15 | Yes |
| board_voltage | Yes |
| can_engine_load | Yes |
| can_engine_temp | Yes |
| can_fuel_1 | Yes |
| can_fuel_economy | Yes |
| can_mileage | Yes |
| can_oil_pressure | Yes |
| can_rpm | Yes |
| can_speed | Yes |
| can_total_fuel_used | Yes |
| can_trip_fuel_used | Yes |
| ext_temp_sensor_8 | Yes |
| hw_mileage | Yes |
| rs232_2 | Yes |
| rs485_4 | Yes |
| stt_large_assign_8 | Yes |
| stt_medium_assign_8 | Yes |
| stt_small_assign_15 | Yes |
