GPS device

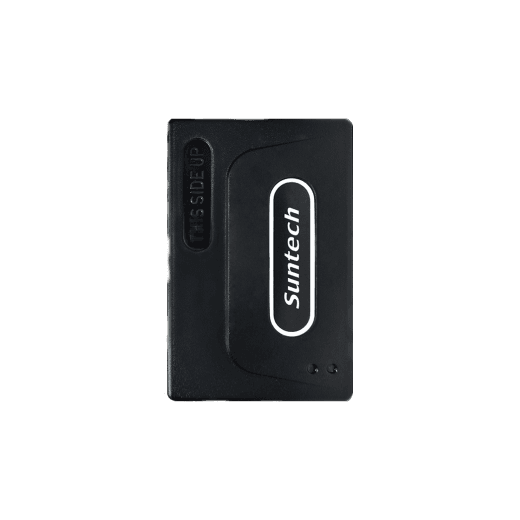

Suntech ST4305RE
SuntechThe Suntech ST4305RE is a telemetry device designed for advanced fleet solutions. It is suitable for use in both mobile and fixed applications, allowing for data transmission of peripherals through its RS232 port, 1-Wire port, digital inputs, digital outputs, and ADC. Key features of the Suntech ST4305RE include a 3-axis accelerometer for motion detection, shock or impact sensing, management pattern analysis when installed in a vehicle, and jam detection. RE modification of ST4305 series can work with external antennas for more precise positioning.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47728 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 115 g |
| Size | 90.5x58x26 mm |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 3 |
| Number of outputs | 2 |
| Analog sensor | Yes |
Features
| Satellites | Yes |
| Auto Registration | Yes |
| Board Voltage | Yes |
| Gprs Location Request | Yes |
| Sos Button | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Sim Card | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| alt_large_assign_8 | Yes |
| alt_medium_assign_8 | Yes |
| alt_small_assign_15 | Yes |
| board_voltage | Yes |
| can_engine_load | Yes |
| can_engine_temp | Yes |
| can_fuel_1 | Yes |
| can_fuel_economy | Yes |
| can_mileage | Yes |
| can_oil_pressure | Yes |
| can_rpm | Yes |
| can_speed | Yes |
| can_total_fuel_used | Yes |
| can_trip_fuel_used | Yes |
| ext_temp_sensor_8 | Yes |
| hw_mileage | Yes |
| rs232_2 | Yes |
| rs485_4 | Yes |
| stt_large_assign_8 | Yes |
| stt_medium_assign_8 | Yes |
| stt_small_assign_15 | Yes |
