GPS device

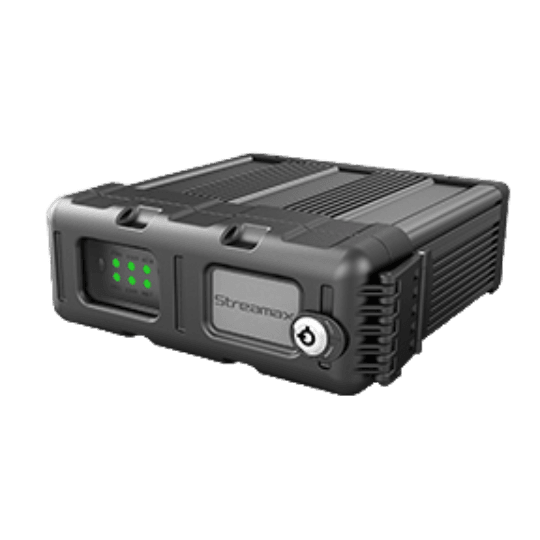

Streamax M1N-TKH0401
StreamaxM1N-TKH0401 is a 4-channel MDVR with integrated digital tachograph support. Provides GPS tracking, SD/SSD storage, CAN bus interface, event-triggered recording, and synchronization with driver work hours. ADAS/DMS functionality not supported. Suitable for fleets under ELD or EU tachograph regulations.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47637 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 450 g |
| Size | 140x100x35 mm |
| Waterproof class | IP40 |
Interfaces
| Digital inputs | 8 |
| Analog sensor | No |
Features
| Satellites | Yes |
| Board Voltage | Yes |
| Sos Button | Yes |
| Odometer | Yes |
| Gsm Signal Level | Yes |
| Custom Fields | Yes |
| Altitude | Yes |
State Fields
| State Fields | Event code |
Inputs and outputs
| board_voltage | Yes |
| humidity_internal | Yes |
| temp_sensor | Yes |
