GPS device

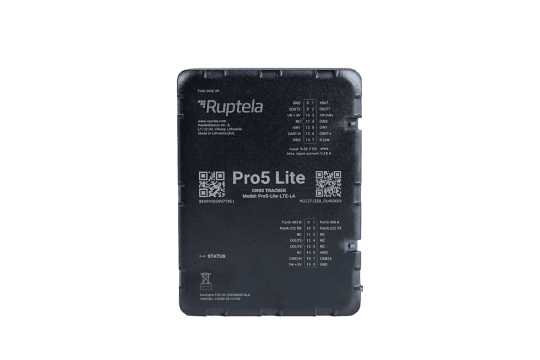

Ruptela PRO5 Lite
RuptelaThe Ruptela Pro5 Lite is a compact, modern GPS featuring 4G LTE-Cat1 connectivity with fallback to 2G. It supports dual CAN interfaces (for reading FMS, J1939, proprietary manufacturer data and tachograph parameters), multiple I/O options (including digital inputs, analog inputs, digital outputs, RS-232/485, and a 1-Wire interface), and embedded BLE 5.0. It operates on a wide input voltage range (9–32 V DC), includes a backup Li-Po battery, and is secured with features like tamper detection, jamming detection, and TLS v1.2 encryption for communications.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47747 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 120 g |
| Size | 101x74x23 mm |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 4 |
| Number of outputs | 4 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Digital Outputs | Yes |
| Fuel Level | Yes |
| Temp Sensor | Yes |
| Board Voltage | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| avl_io_1000 | Yes |
| battery_current | Yes |
| board_voltage | Yes |
| can_adblue_level | Yes |
| can_ambient_air_temp | Yes |
| can_avg_fuel_economy | Yes |
| can_axle_load_5 | Yes |
| can_brake_pedal_position | Yes |
| can_consumption | Yes |
| can_coolant_t | Yes |
| can_engine_hours | Yes |
| can_engine_load | Yes |
| can_engine_manifold_temp | Yes |
| can_engine_temp | Yes |
| can_fuel_2 | Yes |
| can_fuel_economy | Yes |
| can_fuel_litres | Yes |
| can_fuel_rate | Yes |
| can_idle_consumption | Yes |
| can_idle_engine_hours | Yes |
| can_intake_air_t | Yes |
| can_mileage | Yes |
| can_oil_pressure | Yes |
| can_oil_temperature | Yes |
| can_rpm | Yes |
| can_speed | Yes |
| can_throttle | Yes |
| can_total_fuel_used | Yes |
| can_total_fuel_used_gas | Yes |
| can_transmission_oil_temp | Yes |
| ext_temp_sensor_4 | Yes |
| fuel_level | Yes |
| hw_mileage | Yes |
| lls_level_12 | Yes |
| lls_temperature_12 | Yes |
| temp_sensor | Yes |
