GPS device

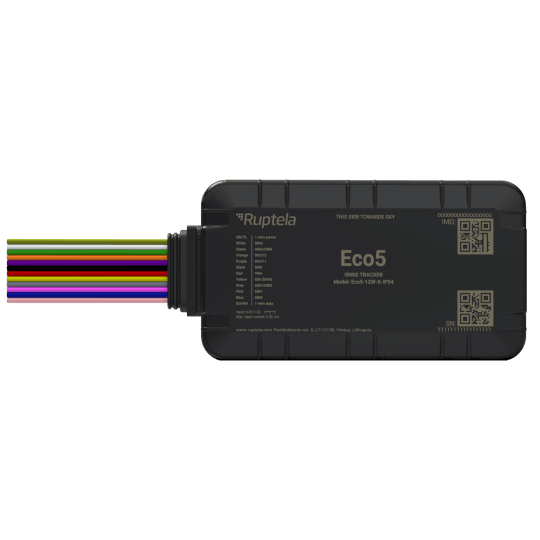

Ruptela Eco5
RuptelaRuptela Eco5 is a compact and universal GNSS-based vehicle tracker designed for fleet management. It offers 4G and 2G connectivity. Additionally, an IP54 and IP68 versions of the device with a rugged housing provide complete protection against water, dirt, and mechanical factors. Eco5 has a jamming detection alert for additional security. Various interfaces such as discrete inputs, universal analog/discrete inputs and 1-wire interface along with 2 digital outputs can be used in a combination with external gear for advanced telematics monitoring.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47747 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 90 g |
| Size | 95x51x14 mm |
| Waterproof class | IP54 |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 7 |
| Number of outputs | 2 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Temp Sensor | Yes |
| Board Voltage | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| avl_io_1000 | Yes |
| board_voltage | Yes |
| ext_temp_sensor_5 | Yes |
| humidity_5 | Yes |
| hw_mileage | Yes |
| temp_sensor | Yes |
