Queclink GV58CG
    GPS device

    Queclink GV58CG

    Queclink

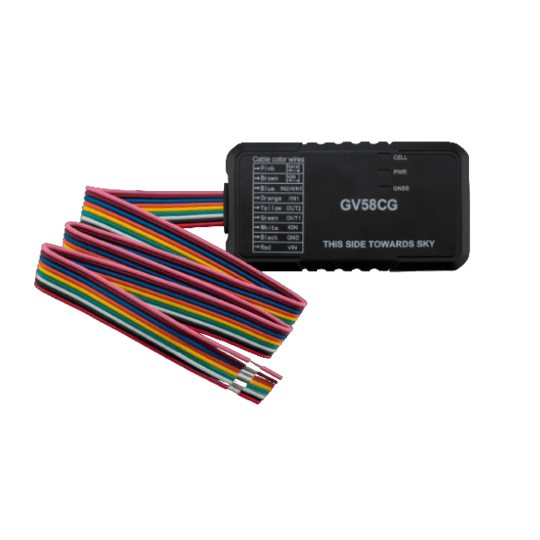

    The GV58CG is a cost-effective LTE Cat 1 telematics device ideal for variety of fleet management applications range from general fleet tracking, car rental and leasing, stolen vehicle recovery, logistics and more. The GV58CG optimizes the available I/Os, allowing fuel cut-off, ignition detections, and a single analog sensor in addition to driver identification over 1-wire or BLE. Supported accessories include a range of BLE-based temperature and humidity, fuel level as well as angle tilt monitoring solutions offered either from Queclink or selected partners.

    Start Free TrialContact Sales

    Server connection

    EU platformtracker.navixy.com (52.57.1.136)
    US platformtracker.us.navixy.com (13.52.37.2)
    MENA platformtracker.me.navixy.com (34.166.104.189)
    Server port47764
    Auto registrationYes

    General information

    PurposeVehicle
    Weight80 g
    Size86.7x46.4x18.1 mm
    Internal antenna (GNSS)Yes

    Interfaces

    Digital inputs4
    Number of outputs2
    Analog sensorYes

    Features

    Auto RegistrationYes
    Fuel LevelYes
    Board VoltageYes
    Led ControlYes
    Location RequestYes
    Gprs Location RequestYes
    Gsm Lbs Location RequestYes
    OdometerYes
    Local Time IssueYes
    Gsm LbsYes
    Gsm Signal LevelYes
    Motion sensorYes
    Apn SettingsYes
    Hardware keyYes
    AltitudeYes
    Sim CardYes
    SatellitesYes
    Gsm RoamingYes

    State Fields

    State Fields
    • •Ble magnet sensor 10
    • •Can abs state
    • •Can air conditioning
    • •Can airbag state
    • •Can brake state
    • •Can clutch state
    • •Can coolant temp or level
    • •Can cruise control
    • •Can door driver state
    • •Can door passenger state
    • •Can engine state
    • •Can eps state
    • •Can front fog lights
    • •Can hand brake state
    • •Can hood state
    • •Can low fuel
    • •Can oil pressure or level
    • •Can rear fog lights
    • •Can seat belt driver state
    • •Can trunk state
    • •External power state
    • •Hardware key
    • •Moving
    • •Obd dtc codes
    • •Obd dtc number
    • •Obd vin
    • •Sub event code
    • •Tacho card1 sn
    • •Tacho card2 sn

    Inputs and outputs

    board_voltageYes
    can_adblue_levelYes
    can_ambient_air_tempYes
    can_axle_load_4Yes
    can_consumptionYes
    can_coolant_tYes
    can_engine_hoursYes
    can_engine_percent_torqueYes
    can_fuel_1Yes
    can_fuel_litresYes
    can_fuel_rateYes
    can_idle_consumptionYes
    can_idle_engine_hoursYes
    can_mileageYes
    can_rpmYes
    can_speedYes
    can_throttleYes
    ext_temp_sensor_10Yes
    fuel_consumptionYes
    fuel_levelYes
    hw_mileageYes
    lls_level_1Yes
    lls_level_percent_1Yes
    lls_level_raw_1Yes
    lls_temperature_1Yes
    rs485_1Yes
    tire_pressure_255Yes
    tire_sensor_battery_voltage_255Yes
    tire_sensor_status_255Yes
    tire_temperature_255Yes
