GPS device

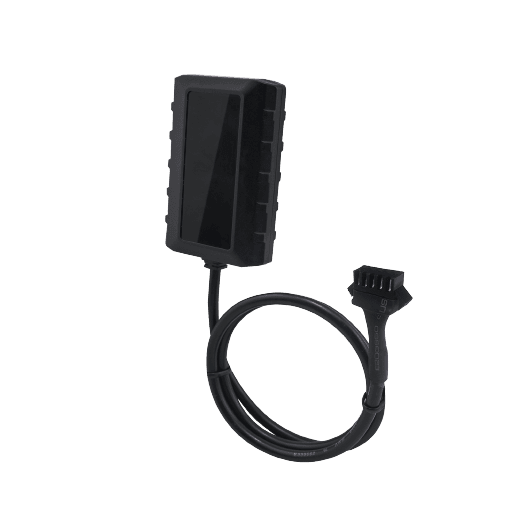

Queclink GV57MG
QueclinkThe GV57MG integrates the latest low-power wide area network standards and covers a broader area, making it more flexible todeploy. With waterproof design, it ensures the product remains reliable when installed in the harsh environments. It offers basicdigital I/Os that can be used for ignition detection and vehicle control. The product features Queclink’s revolutionary zero powerconsumption, allowing owners to leave their cars and motorcycles unattended for long periods of time without having to worryabout a flat battery. The product is ideal for stolen vehicle recovery, motorcycle monitoring and other basic tracking applications.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 74 g |
| Size | 84x50x16.6 mm |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 3 |
| Number of outputs | 1 |
| Analog sensor | Yes |
Features
| Satellites | Yes |
| Auto Registration | Yes |
| Board Voltage | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Gsm Lbs Location Request | Yes |
| Odometer | Yes |
| Local Time Issue | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Altitude | Yes |
| Sim Card | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| board_voltage | Yes |
| hw_mileage | Yes |
