GPS device

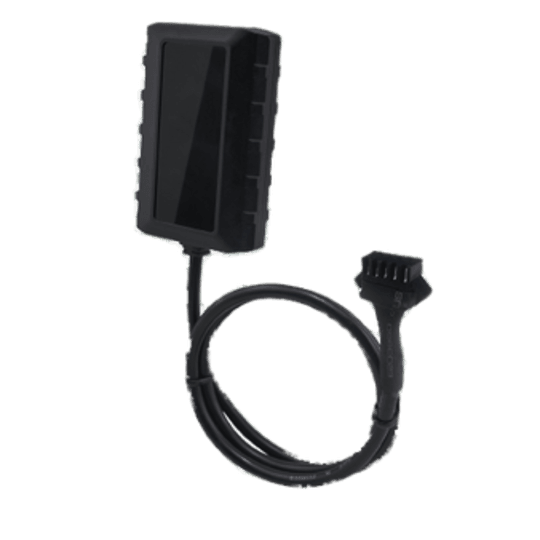

Queclink GV57CG
QueclinkThe GV57CG is a LTE Cat 1 telematics device that can be used for a wide range of transportation monitoring applications such as micromobility, stolen vehicle recovery, automobile finance and logistics. The device’s IP67-rated waterproof casing design ensures long-term reliability in humid, harsh environments. Its wide operating voltage range of 9~90V also makes it suitable for a variety of electric vehicles, including e-bikes, scooters, golf carts, etc.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 76 g |
| Size | 84x50x16.6 mm |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 2 |
| Number of outputs | 1 |
| Analog sensor | Yes |
Features
| Satellites | Yes |
| Auto Registration | Yes |
| Board Voltage | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Gsm Lbs Location Request | Yes |
| Odometer | Yes |
| Local Time Issue | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Altitude | Yes |
| Sim Card | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| board_voltage | Yes |
| hw_mileage | Yes |
