GPS device

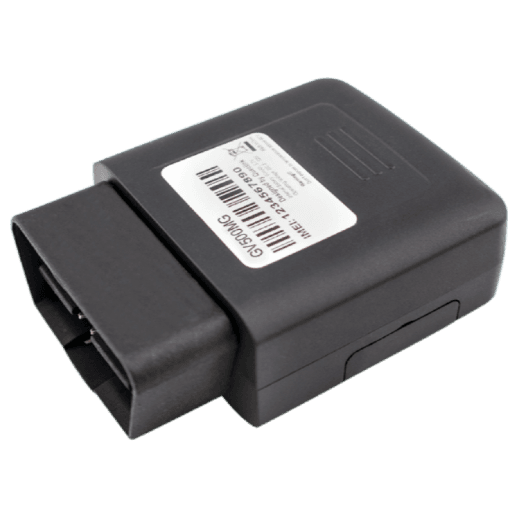

Queclink GV500MG
QueclinkThe GV500MG OBDII LTE plug n' play device allows for quick and easy install into small and light-duty vehicles. Gain instant visibility into your fleets' whereabouts and behaviors while on the road. GV500MG helps in the following areas: insurance, car leasing, real-time monitoring, mileage tracking, breakdown assistance, dealer lot management, and new driver vehicle monitoring. If you remove the device from the OBDII port, it will send an alert instantly.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 58 g |
| Size | 49.49x48.5x21.9 mm |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 1 |
| Analog sensor | No |
Features
| Auto Registration | Yes |
| Board Voltage | Yes |
| Led Control | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Gsm Lbs Location Request | Yes |
| Odometer | Yes |
| Local Time Issue | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| board_voltage | Yes |
| hw_mileage | Yes |
| obd_consumption | Yes |
| obd_coolant_t | Yes |
| obd_engine_load | Yes |
| obd_fuel | Yes |
| obd_rpm | Yes |
| obd_speed | Yes |
| obd_throttle | Yes |
