GPS device

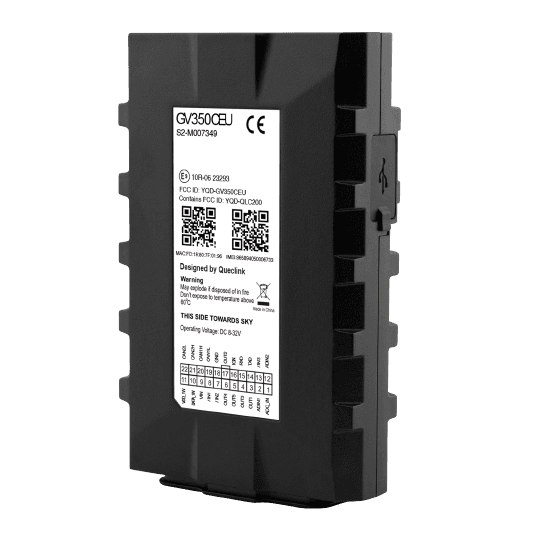

Queclink GV350CEU
QueclinkThe GV350CEU is the new generation advanced telematics solution equipped with LTE Cat 1 and high precision positioning GNSS modules. It can read advanced vehicle data from heavy trucks (CAN and J1708), light commercial vehicles and passenger cars without interfering with vehicle bus wiring or vehicle data ports. With multiple interfaces, the device supports a wide range of pre-integrated accessories either of Queclink or from our selected partners via RS232 serial port and 1-wire interface, providing additional functions such as fuel level monitoring and driver identification. Its built-in BLE allows connectivity to diverse wireless accessories such as BLE beacons and temperature monitoring sensors.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 74 g |
| Size | 94x58.5x21 mm |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 5 |
| Number of outputs | 5 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Fuel Level | Yes |
| Board Voltage | Yes |
| Led Control | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Gsm Lbs Location Request | Yes |
| Odometer | Yes |
| Local Time Issue | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
| Gsm Roaming | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| board_voltage | Yes |
| can_adblue_level | Yes |
| can_ambient_air_temp | Yes |
| can_axle_load_4 | Yes |
| can_consumption | Yes |
| can_coolant_t | Yes |
| can_engine_hours | Yes |
| can_engine_percent_torque | Yes |
| can_fuel_1 | Yes |
| can_fuel_litres | Yes |
| can_fuel_rate | Yes |
| can_idle_consumption | Yes |
| can_idle_engine_hours | Yes |
| can_mileage | Yes |
| can_rpm | Yes |
| can_speed | Yes |
| can_throttle | Yes |
| ext_temp_sensor_10 | Yes |
| fuel_consumption | Yes |
| fuel_level | Yes |
| hw_mileage | Yes |
| lls_level_1 | Yes |
| lls_level_percent_1 | Yes |
| lls_level_raw_1 | Yes |
| lls_temperature_1 | Yes |
| rs485_1 | Yes |
| tire_pressure_255 | Yes |
| tire_sensor_battery_voltage_255 | Yes |
| tire_sensor_status_255 | Yes |
| tire_temperature_255 | Yes |
