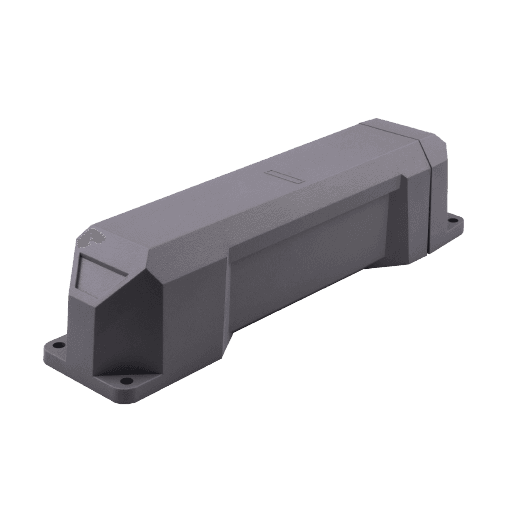

Queclink GL502MG
QueclinkThe GL502MG is a flagship product specifically designed for asset tracking, trailer tracking and container tracking. Its ruggedized IP68 waterproof design ensures the product remains reliable when installed in the harsh environments. The unique casing design allows rapid, flexible and low-cost installations meaning it can simply be placed with container, fixed with four spikes, or set using the optional magnetic holder kit. With 57000 mAh ultra-high capacity battery, the product features up to 10-year standby time meaning that fit and forget installation leaves users safe in the knowledge that the product will continue to monitor the asset over a long period. In addition, its user-replaceable battery brings lower maintenance cost. Its built-in BLE allows connectivity to diverse wireless accessories. It supports Wi-Fi scanning meaning more choice to locate the product and extend its applications in urban environments where there many wireless networks broadcasting and in places that are out of reach to GNSS.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Asset |
| Weight | 719 g |
| Size | 250x58x61 mm |
| Waterproof class | IP68 |
| Internal antenna (GNSS) | Yes |
Features
| Auto Registration | Yes |
| Temp Sensor | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Local Time Issue | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Wifi Lbs | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields | Moving |
Inputs and outputs
| temp_sensor | Yes |
