GPS device

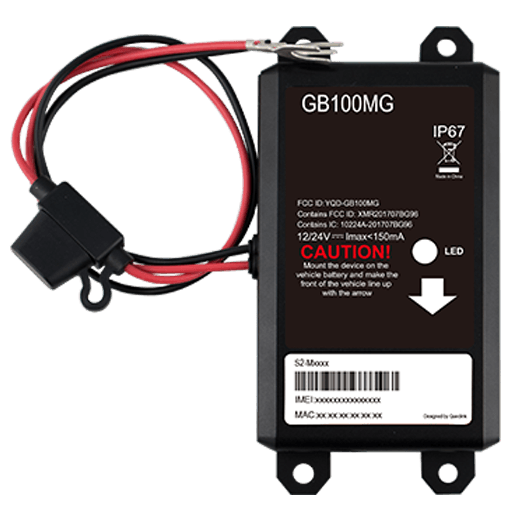

Queclink GB100MG
QueclinkThe GB100MG is the LTE version of the proven usage-based insurance telematics product GB100P. Its built-in 6-axis accelerometer allows accurate accident data sampled at up to 1600 times per second. With built-in BLE it supports wireless accessories; thus allowing the product to be flexible and suitable for applications beyond insurance data acquisition.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 130 g |
| Size | 134.6×67.5×14.8 mm |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 1 |
Features
| Digital Inputs | Yes |
| Auto Registration | Yes |
| Board Voltage | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Gsm Lbs Location Request | Yes |
| Odometer | Yes |
| Local Time Issue | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| board_voltage | Yes |
| hw_mileage | Yes |
