GPS device

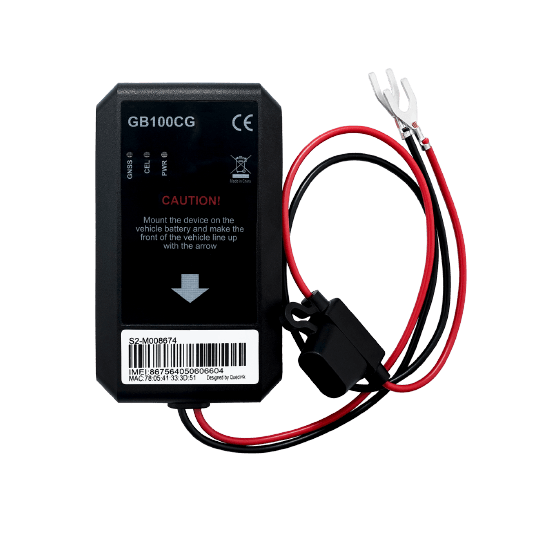

Queclink GB100CG
QueclinkThe GB100CG is an upgraded version of the GB100 battery powered series that integrates LTE Cat1 technology. In addition to its compact and IP67 waterproof design, the GB100CG is easy to install on various types of vehicles with a 2-wire connection.The product features a 6-axis sensor and up to 1600Hz sampling rate, providing functions such as driver behaviour monitoring, crash detection and mileage logging, making it well suited for insurance applications and connected car services.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 70.5 g |
| Size | 96x56×12 mm |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 1 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Board Voltage | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Gsm Lbs Location Request | Yes |
| Odometer | Yes |
| Local Time Issue | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Motion sensor | Yes |
| Apn Settings | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| board_voltage | Yes |
| hw_mileage | Yes |
