GPS device

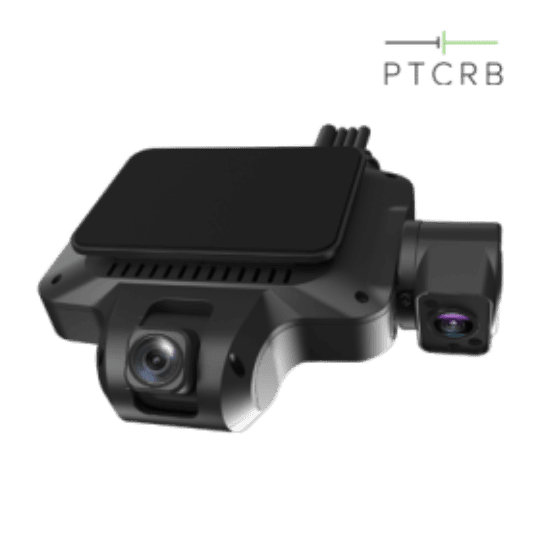

Lightmetrics JC450
LightmetricsJC450 is a compact 4-channel 4G MDVR designed for fleet safety, driver behavior analysis, and real-time video monitoring. With special firmware developed exclusively for the Lightmetrics platform, it supports up to 4×1080P AHD or IPC camera inputs. Device provides full vehicle coverage including road, cabin, side, and rear views. The system features H.265 video compression, dual storage (1TB SSD + 256GB SD), built-in GPS, G-sensor, and LTE connectivity. Integrated ADAS and DMS (optional) enhance driver safety and event detection. Its rugged design, real-time video streaming, and remote management capabilities make it suitable for commercial fleet deployments across various vehicle types.
General information
| Purpose | Vehicle |
| Weight | 374 g |
| Size | 114x113x33 mm |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 1 |
| Analog sensor | Yes |
Features
| Temp Sensor | Yes |
| Board Voltage | Yes |
| Sos Button | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Hardware key | Yes |
| Custom Fields | Yes |
| Altitude | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| board_voltage | Yes |
| temp_sensor | Yes |
