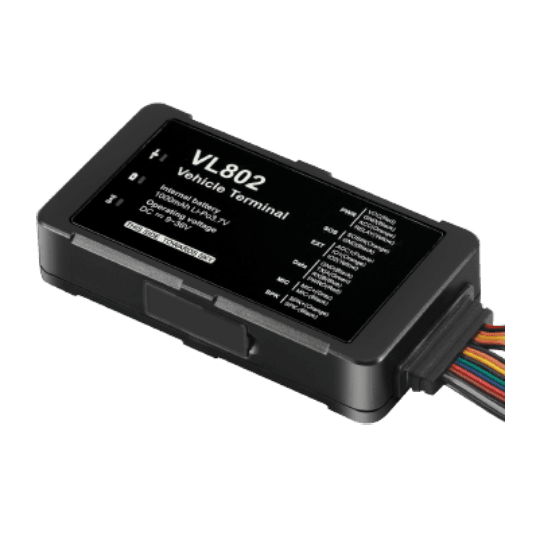

Jimi VL802
Jimi IoT (Concox)The VL802, a cutting-edge 4G GPS tracker by Jimi IoT, is engineered to oversee industrial and commercial fleets, including passenger cars, trucks, and buses. Its two-way communication feature enables fleet managers to enhance driver management tactics. The device ensures reliable connectivity through LTE communication with GSM (2G) fallback, while its array of event-triggered alerts allows real-time fleet monitoring. Equipped with an RS485 interface and multiple I/Os for peripherals, the VL802 can be tailored to optimize operations and increase efficiency. The discreet built-in microphone enables remote audio surveillance of the surroundings, and the vehicle immobilization feature allows cutting off the power source or fuel supply using an installed relay. Moreover, the device offers quick and user-friendly configuration via an app for iOS and Android platforms.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 120 g |
| Size | 105x56x22 mm |
| Waterproof class | IP65 |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 3 |
| Number of outputs | 1 |
| Analog sensor | Yes |
Features
| Auto Registration | Yes |
| Fuel Level | Yes |
| Board Voltage | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Sos Button | Yes |
| Odometer | Yes |
| Local Time Issue | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Apn Settings | Yes |
| Hardware key | Yes |
| Can Use Dns | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| battery_level | Yes |
| board_voltage | Yes |
| ext_temp_sensor_1 | Yes |
| fuel_level | Yes |
| hw_mileage | Yes |
| lls_level_2 | Yes |
