GPS device

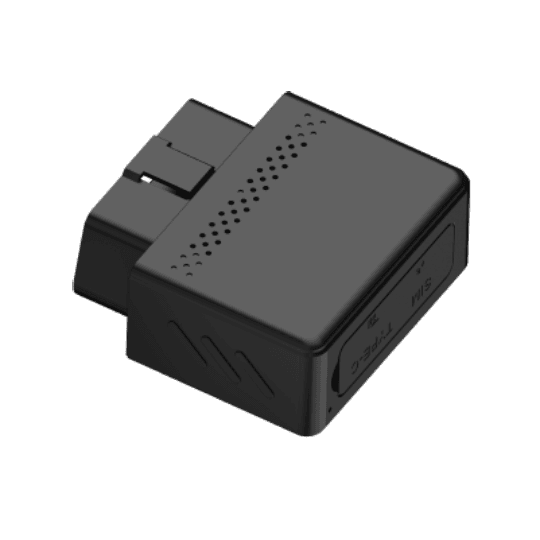

Jimi VL512
Jimi IoT (Concox)The VL512 is a specialized 4G OBDII tracker tailored for vehicular use. Boasting a compact design and an OBD port, this device easily fits into practically any passenger car, making it perfect for managing fleets. Its LTE communication with GSM (2G) fallback guarantees a strong connection in nearly every situation, while the GPS+BDS positioning system delivers enhanced accuracy for tracking your fleet's location and status. The VL512 enables you to monitor the exact whereabouts, direction, and speed of each vehicle, and sends alerts when any of the four types of hazardous driving behaviors are detected. Additionally, the discreet built-in microphone allows remote monitoring and recording of ambient sounds surrounding the device.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 42 g |
| Size | 51x50x22 mm |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 1 |
| Analog sensor | No |
Features
| Auto Registration | Yes |
| Board Voltage | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Local Time Issue | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Apn Settings | Yes |
| Can Use Dns | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields | Event code |
Inputs and outputs
| battery_level | Yes |
| board_voltage | Yes |
| hw_mileage | Yes |
