GPS device

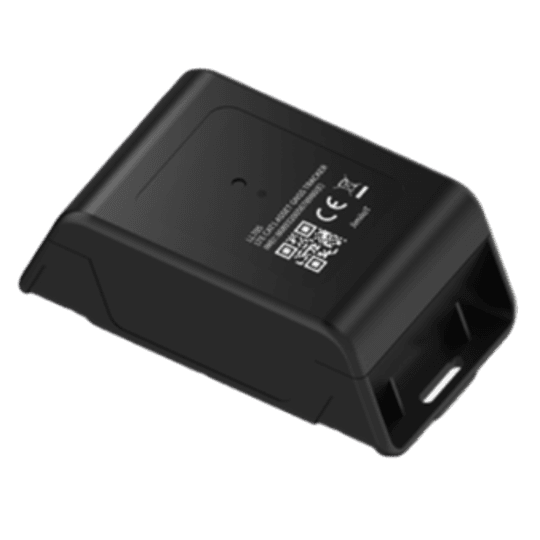

Jimi JM-LL705
Jimi IoT (Concox)The LL705 is a 4G wireless GPS tracker, engineered specifically for monitoring high-value assets such as construction and mining equipment. Its powerful 18,000mAh internal battery enables the device to operate up to a decade, given the most energy-efficient settings. This makes it ideal for scenarios needing extended service life and infrequent location updates. The LL705 can accurately identify the location of your assets through GPS+Beidou satellite systems and cell towers. Additionally, it provides installation flexibility, allowing customization with mounting accessories of your choice. Can be used for construction equipment management, mining equipment management and trailer tracking.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | Asset |
| Weight | 289 g |
| Size | 120x68x43.5 mm |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
Features
| Auto Registration | Yes |
| Temp Sensor | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Local Time Issue | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Wifi Lbs | Yes |
| Apn Settings | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields | Event code |
Inputs and outputs
| battery_voltage | Yes |
| humidity_internal | Yes |
| hw_mileage | Yes |
| temp_sensor | Yes |
