GPS device

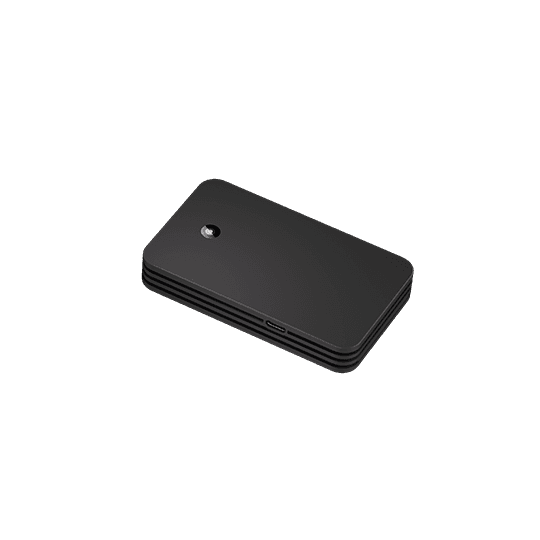

Jimi JM-LL309
Jimi IoT (Concox)The LL309 is a 4G asset tracker that provides precise location tracking through GPS, BDS, and LBS. It’s equipped with a built-in temperature and humidity sensor, continuously monitoring conditions and sending instant alerts over the 4G network if any deviations occur, making it ideal for safeguarding perishable goods. Even when offline, the LL309 can store up to 20,000 records of location, temperature, and humidity, which can be easily exported via a Type-C cable for further analysis. It’s a versatile solution, perfect for refrigerated trucks, parcels, and other sensitive cargo tracking applications.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | Asset |
| Weight | 108 g |
| Size | 100×60×15 mm |
| Waterproof class | IP67 |
| Internal antenna (GNSS) | Yes |
Features
| Auto Registration | Yes |
| Temp Sensor | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Local Time Issue | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Wifi Lbs | Yes |
| Apn Settings | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields | Event code |
Inputs and outputs
| battery_voltage | Yes |
| humidity_internal | Yes |
| hw_mileage | Yes |
| temp_sensor | Yes |
