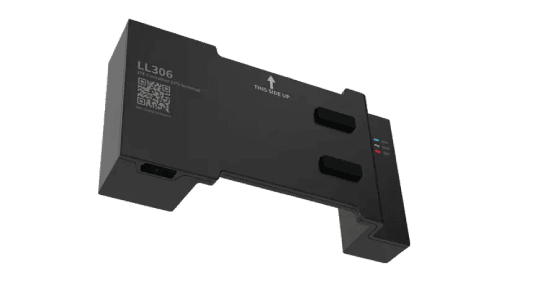

Jimi JM-LL306
Jimi IoT (Concox)The Concox JM-LL306 is a 4G LTE Cat.1 asset GPS tracker with 2G GSM fallback, designed for long standby time and reliable tracking of various assets. Its GPS, BDS, and LBS positioning systems provide accurate and versatile location tracking in different environments. The long standby time is achieved through a high-capacity rechargeable battery, ensuring extended operation without frequent charging. Built with a robust and durable housing and an IP65 rating for dust and water resistance, it is well-suited for use in various environmental conditions. The strong magnetic mount allows for easy and secure attachment to metallic surfaces, eliminating the need for complex installation. Furthermore, the device offers the flexibility of multiple working modes, allowing users to optimize tracking frequency and power consumption based on their specific needs.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | asset,cargo |
| Weight | 370 g |
| Size | 43x104x200 mm |
| Waterproof class | IP65 |
Interfaces
| Digital inputs | 1 |
Features
| Auto Registration | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Local Time Issue | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Apn Settings | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields | Event code |
Inputs and outputs
| battery_voltage | Yes |
| hw_mileage | Yes |
