GPS device

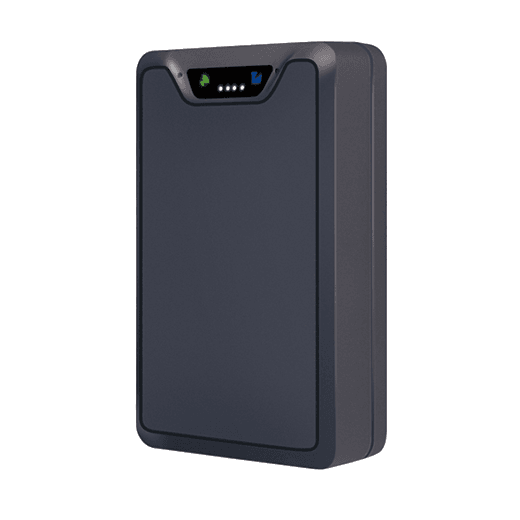

Jimi JM-LL302
Jimi IoT (Concox)Designed for vehicle & asset tracking, LL302 is a 4G Wireless Asset GNSS Tracker that supports GPS/BDS/LBS/Wi-Fi positioning, light sensor, and multiple alerts for abnormal vibration, low battery, etc. With our platform and mobile App, LL302 is ideal for remote monitoring of users’ targets, and it’s also suitable for such application scenarios as vehicle rental, fleet management, logistics transportation, etc.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47755 |
| Auto registration | Yes |
General information
| Purpose | Asset |
| Weight | 233 g |
| Size | 95x59x29.2 mm |
| Waterproof class | IPX5 |
| Internal antenna (GNSS) | Yes |
Features
| Auto Registration | Yes |
| Temp Sensor | Yes |
| Location Request | Yes |
| Gprs Location Request | Yes |
| Odometer | Yes |
| Local Time Issue | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Wifi Lbs | Yes |
| Apn Settings | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields | Event code |
Inputs and outputs
| battery_voltage | Yes |
| humidity_internal | Yes |
| hw_mileage | Yes |
| temp_sensor | Yes |
