GPS device

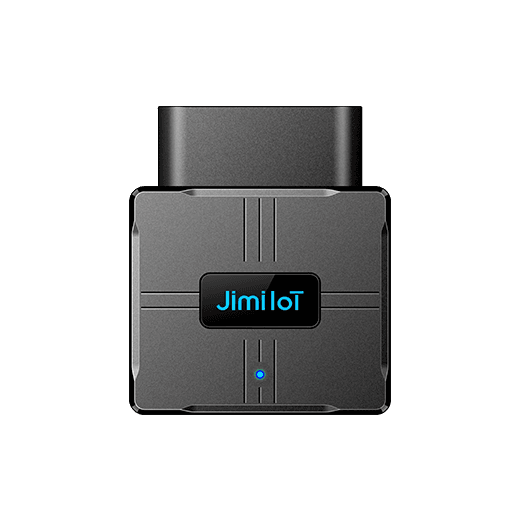

Jimi JM-VG502
Jimi IoT (Concox)The VG502 is an easy-to-install OBDII GPS tracker designed for company/official cars, private cars, and usage-based insurance. Featuring the driving behavior analysis (DBA) leveraging the UBI-based algorithm, this device can accurately analyze any of 4 kinds of dangerous driving behavior and support the all-around monitoring of vehicles’ real-time status. With on-board diagnostics, multiple positioning systems, Bluetooth connectivity, and the suite of event-triggered alerts, the VG502 is an ideal solution for both fleet management and private use.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47647 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 55 g |
| Size | 61x52x26 mm |
| Internal antenna (GNSS) | Yes |
Interfaces
| Digital inputs | 1 |
| Analog sensor | No |
Features
| Auto Registration | Yes |
| Odometer | Yes |
| Gsm Lbs | Yes |
| Gsm Signal Level | Yes |
| Apn Settings | Yes |
| Altitude | Yes |
| Sim Card | Yes |
| Satellites | Yes |
State Fields
| State Fields |
|
Inputs and outputs
| can_ambient_air_temp | Yes |
| can_battery_voltage | Yes |
| can_consumption | Yes |
| can_coolant_t | Yes |
| can_engine_load | Yes |
| can_engine_manifold_temp | Yes |
| can_engine_oil_level | Yes |
| can_engine_percent_torque | Yes |
| can_fuel_1 | Yes |
| can_fuel_litres | Yes |
| can_fuel_rate | Yes |
| can_fuel_temperature | Yes |
| can_gross_combo_vehicle_weight | Yes |
| can_intake_air_t | Yes |
| can_mileage | Yes |
| can_oil_pressure | Yes |
| can_oil_temperature | Yes |
| can_rpm | Yes |
| can_speed | Yes |
| can_throttle | Yes |
| can_total_fuel_used | Yes |
| raw_obd_65535 | Yes |
